Tube fitting BUH-S

Contact Us DownLoad PDF

Details

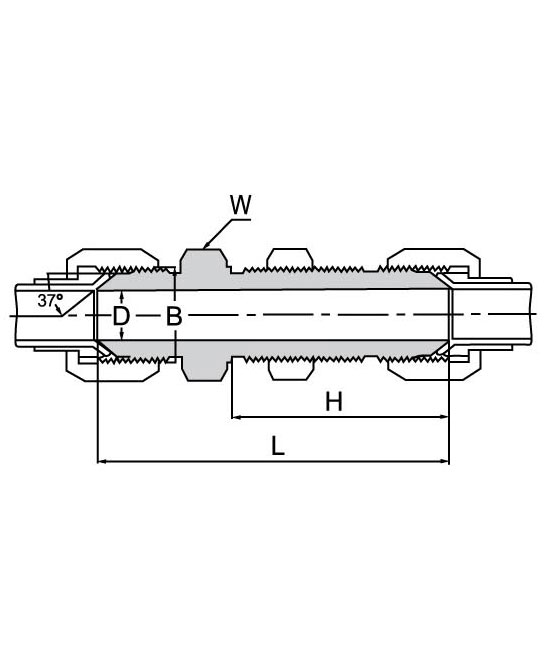

BUH TYPE BULKHEAD UNION

According to S.A.E 070601



tube outside inch

diameter mm

B

UNF

D

W

inch

H

L

inch mm inch mm inch mm

BUH-3/16

-

3/8-24

0.125

3.2

5/8

1.11

28.2

1.90

48.3

BUH-1/4

6

7/16-20

0.172

4.4

11/16

1.20

30.5

2.07

52.6

BUH-5/16

8

1/2-20

0.234

6.0

3/4

1.20

30.5

2.07

52.6

BUH-3/8

10

9/16-18

0.297

7.5

13/16

1.28

32.5

2.18

55.4

BUH-1/2

12

3/4-16

0.391

9.9

1

1.44

36.6

2.44

62.0

BUH-5/8

16

7/8-14

0.484

12.3

11/8

1.58

40.1

2.74

69.6

BUH-3/4

18

14/16-12

0.609

15.5

13/8

1.75

44.4

3.09

78.5

BUH-7/8

20

1-3/16-12

0.719

18.3

11/2

1.75

44.4

3.12

79.2

BUH-1

25

1-5/16-12

0.844

21.5

15/8

1.75

44.4

3.14

79.8

BUH-1-1/4

32

1-5/8-12

1.078

27.5

17/8

1.80

45.7

3.31

84.1

BUH-1-1/2

38

1-7/8-12

1.312

33.0

21/8

1.81

46.0

3.52

89.4

BUH-2



2-1/2-12

1.781

45.0

23/4

2.09

53.1

4.20

106.7



All dimensions are in mullimeters unless otherwise specified, only for reference subject to change.
