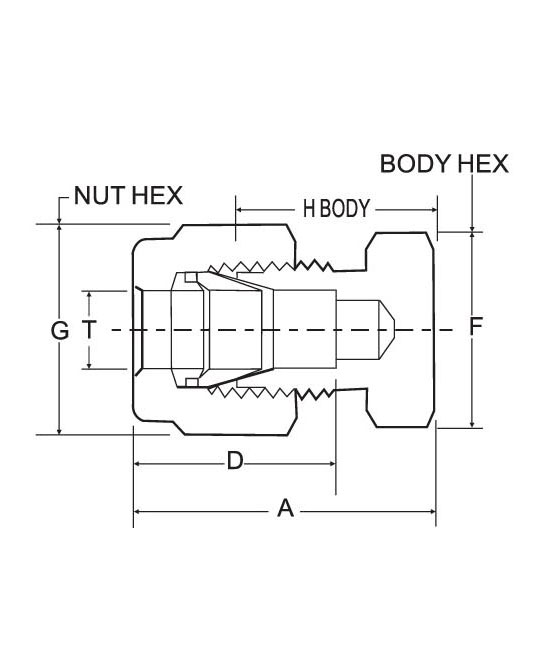

CAP (METRIC)
|
TUBE O.D. |
CATALOG NUMBER |
A |
D |
F |
G |
H |
|
2 |
C-2 |
20.1 |
12.9 |
12 |
12 |
13.5 |
|
3 |
C-3 |
20.1 |
12.9 |
12 |
12 |
13.5 |
|
4 |
C-4 |
21.3 |
13.7 |
12 |
12 |
14.7 |
|
6 |
C-6 |
23.1 |
15.3 |
14 |
14 |
15.7 |
|
8 |
C-8 |
24.5 |
16.2 |
14 |
17 |
17.0 |
|
10 |
C-10 |
26.6 |
17.2 |
19 |
19 |
19.0 |
|
12 |
C-12 |
29.1 |
22.8 |
22 |
22 |
19.0 |
|
14 |
C-14 |
29.9 |
24.4 |
24 |
27 |
19.8 |
|
15 |
C-15 |
29.9 |
24.4 |
24 |
27 |
19.8 |
|
16 |
C-16 |
29.9 |
24.4 |
24 |
27 |
19.8 |
|
18 |
C-18 |
31.4 |
24.4 |
27 |
30 |
21.3 |
|
20 |
C-20 |
34.0 |
26.0 |
30 |
32 |
23.9 |
|
22 |
C-22 |
34.0 |
26.0 |
30 |
32 |
23.9 |
|
25 |
C-25 |
38.5 |
31.3 |
35 |
41 |
26.2 |
(FRACTIONAL)
|
1/16 |
C-005 |
15.0 |
8.6 |
10 |
10 |
11.2 |
|
1/8 |
C-01 |
20.1 |
12.7 |
12 |
12 |
13.5 |
|
3/16 |
C-015 |
21.3 |
13.7 |
12 |
12 |
14.7 |
|
1/4 |
C-02 |
23.4 |
15.2 |
14 |
14 |
17.0 |
|
3/8 |
C-03 |
25.7 |
16.3 |
17 |
17 |
18.3 |
|
1/2 |
C-04 |
29.2 |
22.8 |
22 |
22 |
19.1 |
|
3/4 |
C-06 |
31.5 |
24.4 |
27 |
30 |
21.3 |
|
1 |
C-08 |
38.4 |
31.2 |
35 |
38 |
26.2 |
All dimensions are in multimeters unless otherwise specijied, onlyJor reference subject to change.
