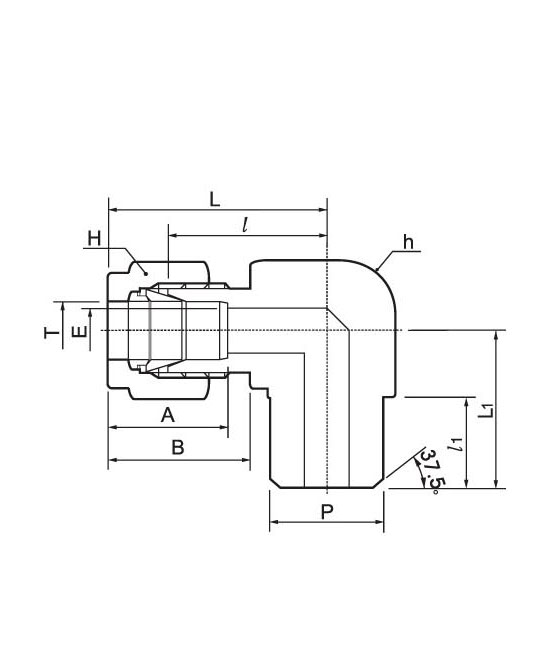

Tube fitting EBW-S

T

TUBE

O.D.

MALE PIPE SIZI P

CATALOG

NUMBER

A

B

E

h

H

l

l1

L

L1

1/8

1/8

10.29

EBW-01-1P

15.24

17.78

4.82

12.70

14.28

19.55

9.65

26.92

18.79

1/4

1/4

13.72

EBW-02-2P

15.24

17.78

4.82

12.70

14.28

19.55

14.22

26.92

23.36

3/8

1/4

13.72

EBW-03-2P

16.76

19.30

7.11

15.87

17.46

23.11

14.22

30.48

25.40

1/2

1/2

21.34

EBW-04-4P

22.86

21.84

10.41

20.64

22.22

25.90

19.05

36.06

33.02

3/4

3/4

26.67

EBW-06-6P

24.38

21.84

15.74

26.98

28.58

29.71

19.05

39.87

36.83
