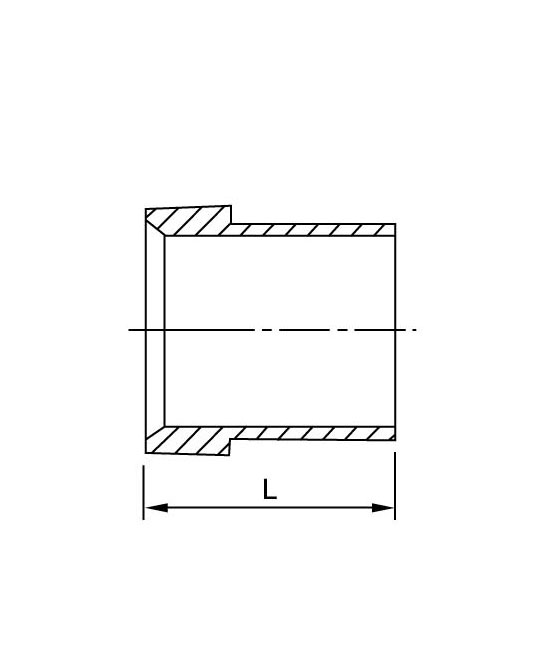

Tube fitting HF-S

tube outside diameter

L

HF-1/8

0.34

8.6

HF-3/16

0.34

8.6

HF-1/4

0.41

10.4

HF-5/16

0.44

11.2

HF-3/8

0.5

12.7

HF-1/2

0.56

14.2

HF-5/8

0.66

16.8

HF-3/4

0.68

17.3

HF-7/8

0.76

19.3

HF-1

0.78

19.8

HF-1-1/4

0.91

23.1

HF-1-1/2

1.12

28.4

HF-2

1.19

30.2

tube outside diameter

L

mm

-

-

-

-

6

10.4

8

11.2

10

12.7

12

14.2

16

16.8

18

17.3

20

19.3

25

19.8

32

23.1

38

28.4
