Tube fitting HME-S

Contact Us DownLoad PDF

Details

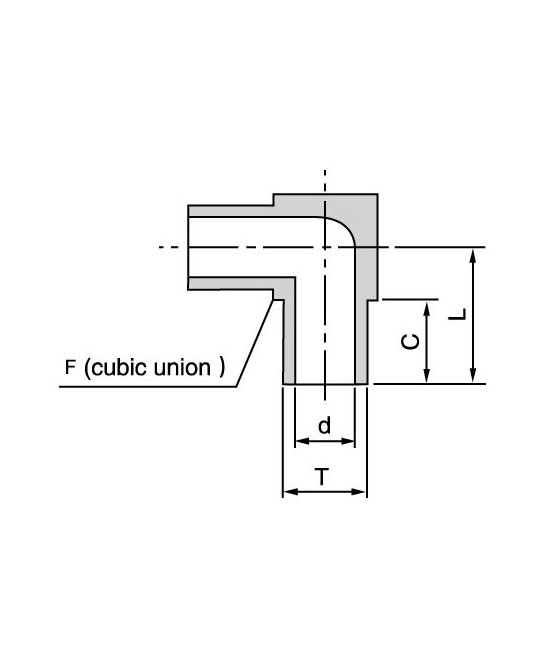

HME MINI ELBOW



parts number

L

c

d

F

T

tube outside diameter

thread

width

mm

inch

mm

inch

mm

inch

inch

inch/mm

mm

inch

H-ME-1/8-W

10.40

0.41

6.35

0.25

1.86

0.07

5/16

1/8"

-

0.028

H-ME-1/4-W

10.40

0.41

6.35

0.25

4.56

0.18

5/16

1/4"

-

0.035

H-ME-3/8-W

11.93

0.47

6.35

0.25

7.73

0.30

7/16

3/8"

-

0.035

H-ME-1/2-W

13.53

0.53

6.35

0.25

10.2

0.40

9/16

1/2"

-

0.049

H-ME-1/2-WW.T =0.065

13.53

0.53

6.35

0.25

9.46

0.37

9/16

1/2"

-

0.065

H-ME-3/4-WW.T =0.065

17.37

0.68

6.35

0.25

15.81

0.62

7/8

3/4

-

0.065

H-ME-1-WW.T =0.065

19.83

0.78

6.35

0.25

22.16

0.87

1-1/16

1"

-

0.065

H-ME-6MM-W

10.33

0.41

6.35

0.25

4.00

0.16

5/16

6MM

1.00

-

H-ME-8MM-W

11.93

0.47

6.35

0.25

6.00

0.24

7/16

8MM

1.00

-

H-ME-10MM-W

11.93

0.47

6.35

0.25

8.00

0.31

7/16

10MM

1.00

-

H-ME-12MM-W

13.53

0.53

6.35

0.25

10.00

0.39

9/16

12MM

1.00

-
