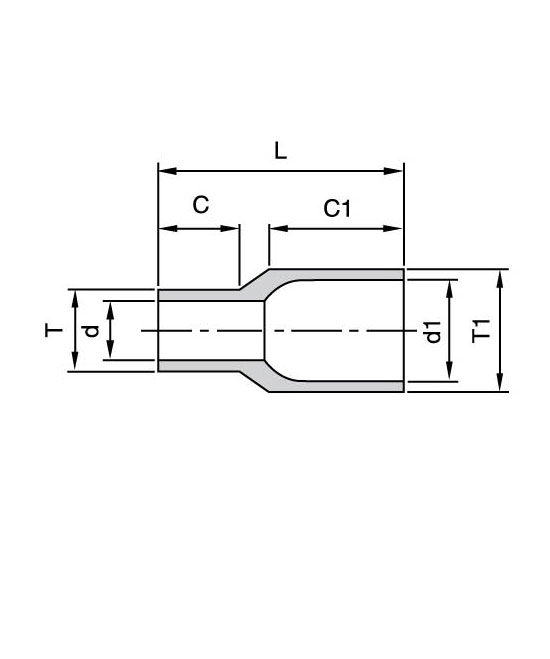

HRU REDUCING UNION
|
parts number |
L |
d1 |
d |
C1 |
C |
T1 tube outside diameter |
thread width (T1) |
T tube outside diameter |
thread width (T1) |
|||||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | inch | mm | inch | mm | inch | mm | inch | mm | |
|
H-RU-1/4x1/8 |
19.05 |
0.75 |
4.56 |
0.18 |
1.86 |
0.07 |
10.41 |
0.41 |
6.35 |
0.25 |
1/4 |
- |
0.035 |
- |
1/8 |
- |
0.028 |
|
|
H-RU-3/8X1/4 |
19.05 |
0.75 |
7.73 |
0.30 |
4.56 |
0.18 |
10.41 |
0.41 |
6.35 |
0.25 |
3/8 |
- |
0.035 |
- |
1/4 |
- |
0.035 |
- |
|
H-RU-1/2X1/4 |
19.05 |
0.75 |
10.20 |
0.40 | 4.56 |
0.18 |
10.41 |
0.41 |
6.35 |
0.25 |
1/2 |
- |
0.049 |
- |
1/4 |
- |
0.035 |
- |
|
H-RU-1/2X3/8 |
19.05 |
0.75 |
10.20 |
0.40 | 7.73 |
0.30 |
10.41 |
0.41 |
6.35 |
0.25 |
1/2 |
- |
0.049 |
- |
3/8 |
- |
0.035 |
- |
|
H-RU-1x1/2 |
19.05 |
0.75 |
22.16 |
0.87 | 10.20 |
0.40 |
10.41 |
0.41 |
6.35 |
0.25 |
1 |
- |
0.065 |
- |
1/2 |
- |
0.049 |
1.00 |
|
H-RU-8MMX6MM |
19.05 |
0.75 |
6.00 |
0.24 |
4.00 |
0.16 |
10.41 |
0.41 |
6.35 |
0.25 |
|
8mm |
|
1.00 |
|
6mm |
|
1.00 |
|
H-RU-10MMx6MM |
19.05 |
0.75 |
8.00 |
0.31 |
4.00 |
0.16 |
10.41 |
0.41 |
6.35 |
0.25 |
|
10mm |
|
1.00 |
|
6mm |
|
1.00 |
|
H-RU-RU-10MMx8MM |
19.05 |
0.75 |
8.00 |
0.31 |
6.00 |
0.24 |
10.41 |
0.41 |
6.35 |
0.25 |
|
10mm |
|
1.00 |
|
8mm |
|
1.00 |
|
H-RU-12MMx6MM |
19.05 |
0.75 |
10.00 |
0.39 | 4.00 |
0.16 |
10.41 |
0.41 |
6.35 |
0.25 |
|
12mm |
|
1.00 |
|
6mm |
|
1.00 |
|
H-RU-12MMx8MM |
19.05 |
0.75 |
10.00 |
0.39 | 6.00 |
0.24 |
10.41 |
0.41 |
6.35 |
0.25 |
|
12mm |
|
1.00 |
|
8mm |
|
1.00 |
|
H-RU-12MMx10MM |
19.05 |
0.75 |
10.00 |
0.39 | 8.00 |
0.31 |
10.41 |
0.41 |
6.35 |
0.25 |
|
12mm |
|
1.00 |
|
10mm |
|
|
All dimensions are in mullimeters unless otherwise specified, only for reference subject to change.
