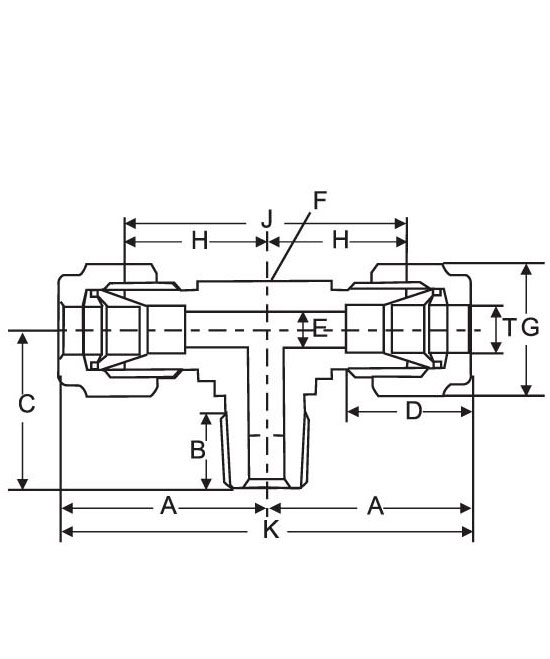

MALE BRANCH TEE (METRIC)
|
T TUBE O.D. |
PT-NPT MALE PIPE SIZE |
CATALOG NUMBER |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
|
4 |
1/8 |
MBT-4-1 |
25.4 |
10 |
19.1 |
13.7 |
3 |
12 |
12 |
18.8 |
37.8 |
50.8 |
|
4 |
1/4 |
MBT-4-2 |
25.4 |
13 |
22.2 |
13.7 |
3 |
14 |
12 |
18.8 |
37.6 |
50.8 |
|
6 |
1/8 |
MBT-6-1 |
27.0 |
10 |
19.1 |
15.3 |
5 |
12 |
14 |
19.6 |
39.2 |
54.0 |
|
6 |
1/4 |
MBT-6-2 |
27.0 |
13 |
22.2 |
15.3 |
5 |
14 |
14 |
19.6 |
39.2 |
54.0 |
|
6 |
3/8 |
MBT-6-3 |
29.8 |
14 |
26.0 |
15.3 |
5 |
17 |
14 |
22.4 |
44.8 |
59.6 |
|
6 |
1/2 |
MBT-6-4 |
31.8 |
17 |
31.0 |
15.3 |
5 |
22 |
14 |
24.4 |
48.8 |
63.6 |
|
8 |
1/8 |
MBT-8-1 |
28.8 |
10 |
20.1 |
16.2 |
6 |
14 |
17 |
21.3 |
42.6 |
57.6 |
|
8 |
1/4 |
MBT-8-2 |
28.8 |
13 |
23.2 |
16.2 |
6 |
14 |
17 |
21.3 |
42.6 |
57.6 |
|
8 |
3/8 |
MBT-8-3 |
30.6 |
14 |
26.0 |
16.2 |
6 |
17 |
17 |
21.3 |
46.2 |
61.2 |
|
8 |
1/2 |
MBT-8-4 |
32.6 |
17 |
31.0 |
16.2 |
6 |
22 |
17 |
23.1 |
50.2 |
65.2 |
|
10 |
1/8 |
MBT-10-1 |
31.5 |
10 |
21.9 |
17.2 |
8 |
17 |
19 |
25.1 |
47.8 |
63.0 |
|
10 |
1/4 |
MBT-10-2 |
31.5 |
13 |
25.0 |
17.2 |
8 |
17 |
19 |
23.9 |
47.8 |
63.0 |
|
10 |
3/8 |
MBT-10-3 |
31.5 |
14 |
26.0 |
17.2 |
8 |
17 |
19 |
23.9 |
47.8 |
63.0 |
|
10 |
1/2 |
MBT-10-4 |
33.5 |
17 |
31.0 |
17.2 |
8 |
22 |
19 |
25.9 |
51.8 |
67.0 |
|
12 |
1/8 |
MBT-12-1 |
36.0 |
10 |
25.7 |
22.8 |
10 |
22 |
22 |
25.9 |
51.8 |
72.0 |
|
12 |
1/4 |
MBT-12-2 |
36.0 |
13 |
27.0 |
22.8 |
10 |
22 |
22 |
25.9 |
51.8 |
72.0 |
|
12 |
3/8 |
MBT-12-3 |
36.0 |
14 |
28.0 |
22.8 |
10 |
22 |
22 |
25.9 |
51.8 |
72.0 |
|
12 |
1/2 |
MBT-12-4 |
36.0 |
17 |
31.0 |
22.8 |
10 |
22 |
22 |
25.9 |
51.8 |
72.0 |
|
12 |
3/4 |
MBT-12-6 |
39.8 |
19 |
36.8 |
22.8 |
10 |
27 |
22 |
29.7 |
59.4 |
79.6 |
|
12 |
1 |
MBT-12-8 |
45.3 |
22 |
45.2 |
22.8 |
10 |
35 |
22 |
35.2 |
70.4 |
90.6 |
|
14 |
3/8 |
MBT-14-3 |
38.0 |
14 |
29.0 |
24.4 |
10 |
24 |
27 |
27.9 |
55.8 |
76.0 |
|
14 |
1/2 |
MBT-14-4 |
38.0 |
17 |
33.1 |
24.4 |
10 |
24 |
27 |
27.9 |
55.8 |
76.0 |
|
14 |
3/4 |
MBT-14-6 |
39.8 |
19 |
36.8 |
24.4 |
10 |
27 |
27 |
29.7 |
59.4 |
79.6 |
|
15 |
3/8 |
MBT-15-3 |
38.0 |
14 |
29.0 |
24.4 |
11 |
24 |
27 |
27.9 |
55.8 |
76.0 |
|
15 |
1/2 |
MBT-15-4 |
38.0 |
17 |
33.1 |
24.4 |
11 |
24 |
27 |
29.7 |
55.8 |
76.0 |
|
15 |
3/4 |
MBT-15-6 |
39.8 |
19 |
36.8 |
24.4 |
11 |
27 |
27 |
27.9 |
59.4 |
79.6 |
|
16 |
3/8 |
MBT-16-3 |
38.0 |
14 |
29.0 |
24.4 |
12 |
24 |
27 |
27.9 |
55.8 |
76.0 |
|
16 |
1/2 |
MBT-16-4 |
38.0 |
17 |
33.1 |
24.4 |
12 |
24 |
27 |
27.9 |
55.8 |
76.0 |
|
16 |
3/4 |
MBT-16-6 |
39.8 |
19 |
36.8 |
24.4 |
12 |
27 |
27 |
29.7 |
59.4 |
79.6 |
|
18 |
3/8 |
MBT-18-3 |
39.8 |
14 |
32.5 |
24.4 |
14 |
27 |
30 |
29.7 |
59.4 |
79.6 |
|
18 |
1/2 |
MBT-18-4 |
39.8 |
17 |
34.8 |
24.4 |
14 |
27 |
30 |
29.7 |
59.4 |
79.6 |
|
18 |
3/4 |
MBT-18-6 |
39.8 |
19 |
36.8 |
24.4 |
14 |
27 |
30 |
29.7 |
59.4 |
79.6 |
|
20 |
1/2 |
MBT-20-4 |
44.6 |
17 |
39.7 |
26.0 |
16 |
30 |
32 |
34.5 |
69.0 |
89.2 |
|
20 |
3/4 |
MBT-20-6 |
44.6 |
19 |
41.7 |
26.0 |
16 |
30 |
32 |
34.5 |
69.0 |
89.2 |
|
22 |
1/2 |
MBT-22-4 |
44.6 |
17 |
39.7 |
26.0 |
18 |
30 |
32 |
34.5 |
69.0 |
89.2 |
|
22 |
3/4 |
MBT-22-6 |
44.6 |
19 |
41.7 |
26.0 |
18 |
30 |
32 |
34.5 |
69.0 |
89.2 |
|
25 |
1/2 |
MBT-25-4 |
49.1 |
17 |
39.7 |
31.3 |
21 |
35 |
38 |
36.8 |
73.6 |
98.2 |
|
25 |
3/4 |
MBT-25-6 |
49.1 |
19 |
41.7 |
31.3 |
21 |
35 |
38 |
36.8 |
73.6 |
98.2 |
|
25 |
1 |
MBT-25-8 |
49.1 |
22 |
41.5 |
31.3 |
21 |
35 |
38 |
36.8 |
73.6 |
98.2 |
(FRACTIONAL)
|
1/8 |
1/8 |
MBT-01-1 |
23.6 |
10 |
18.1 |
12.7 |
3 |
12 |
12 |
17.0 |
34.0 |
47.2 |
|
1/8 |
1/4 |
MBT-01-2 |
24.6 |
13 |
22.2 |
12.7 |
3 |
14 |
12 |
18.0 |
36.0 |
49.2 |
|
1/4 |
1/8 |
MBT-02-1 |
27.0 |
10 |
19.1 |
15.2 |
3 |
12 |
14 |
19.6 |
39.2 |
54.0 |
|
1/4 |
1/4 |
MBT-02-2 |
27.0 |
13 |
22.2 |
15.2 |
5 |
14 |
14 |
19.6 |
39.2 |
54.0 |
|
1/4 |
3/8 |
MBT-02-3 |
29.8 |
14 |
26.0 |
15.2 |
5 |
17 |
14 |
22.4 |
44.8 |
59.6 |
|
1/4 |
1/2 |
MBT-02-4 |
31.8 |
17 |
31.0 |
15.2 |
5 |
22 |
14 |
24.4 |
48.8 |
63.6 |
|
3/8 |
1/8 |
MBT-03-1 |
30.5 |
10 |
21.1 |
16.8 |
8 |
17 |
17 |
21.3 |
42.6 |
61.0 |
|
3/8 |
1/4 |
MBT-03-2 |
30.5 |
13 |
24.2 |
16.8 |
8 |
17 |
17 |
21.3 |
42.6 |
61.0 |
|
3/8 |
3/8 |
MBT-03-3 |
31.2 |
14 |
26.0 |
16.8 |
8 |
17 |
17 |
23.1 |
46.2 |
62.4 |
|
3/8 |
1/2 |
MBT-03-4 |
33.3 |
14 |
31.0 |
16.8 |
8 |
22 |
17 |
26.0 |
52.0 |
66.6 |
|
1/2 |
1/8 |
MBT-04-1 |
36.0 |
10 |
25.7 |
22.8 |
10 |
22 |
22 |
25.9 |
51.8 |
72.0 |
|
1/2 |
1/4 |
MBT-04-2 |
36.0 |
13 |
27.0 |
22.8 |
10 |
22 |
22 |
25.9 |
51.8 |
72.0 |
|
1/2 |
3/8 |
MBT-04-3 |
36.0 |
14 |
28.0 |
22.8 |
10 |
22 |
22 |
25.9 |
51.8 |
72.0 |
|
1/2 |
1/2 |
MBT-04-4 |
36.0 |
17 |
31.0 |
22.8 |
10 |
22 |
22 |
25.9 |
51.8 |
72.0 |
|
1/2 |
3/4 |
MBT-04-6 |
39.8 |
19 |
36.8 |
22.8 |
10 |
27 |
22 |
29.7 |
59.4 |
79.6 |
|
1/2 |
1 |
MBT-04-8 |
45.3 |
22 |
45.2 |
22.8 |
10 |
35 |
22 |
35.2 |
70.4 |
90.6 |
|
5/8 |
3/8 |
MBT-05-3 |
38.1 |
14 |
30.0 |
24.4 |
12 |
24 |
27 |
27.9 |
55.8 |
76.2 |
|
5/8 |
1/2 |
MBT-05-4 |
38.1 |
17 |
33.1 |
24.4 |
12 |
24 |
27 |
27.9 |
55.8 |
76.2 |
|
5/8 |
3/4 |
MBT-05-6 |
40.0 |
19 |
36.8 |
24.4 |
12 |
27 |
27 |
29.7 |
59.4 |
80.0 |
|
3/4 |
3/4 |
MBT-06-6 |
40.5 |
19 |
36.8 |
24.4 |
15 |
27 |
30 |
29.7 |
59.4 |
81.0 |
|
1 |
3/4 |
MBT-08-6 |
49.0 |
19 |
41.7 |
31.3 |
21 |
35 |
38 |
36.8 |
73.6 |
98.0 |
|
1 |
1 |
MBT-08-8 |
49.0 |
22 |
44.5 |
31.3 |
21 |
35 |
38 |
36.8 |
73.6 |
98.0 |
All dimensions are in mullimeters unless otherwise specified, only for reference subject to change.
