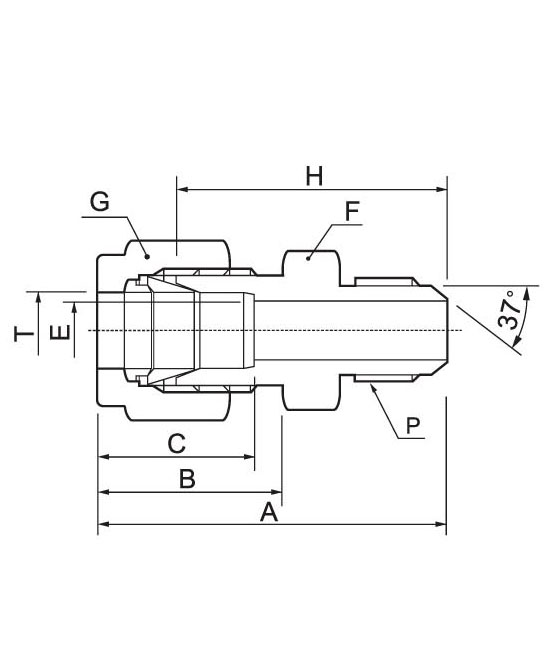

Tube fitting MCH-S

T

TUBE

O.D.

AN TUBE

FLARE SIZE

CATALOG

NUMBER

STRAIGHT

THREAD

P(U)

A

B

C

E

F

G

H

1/16

1/8

MCH-005-1U

5/16-24

27.17

10.92

8.63

1.27

11.11

7.93

23.36

1/8

1/8

MCH-01-1U

5/16-24

31.49

15.24

12.70

1.52

11.11

11.11

24.89

1/8

1/4

MCH-01-2U

7/16-20

35.05

15.24

12.70

2.28

12.70

11.11

28.44

1/4

1/4

MCH-02-2U

7/16-20

37.59

17.78

15.24

4.31

12.70

14.28

30.22

5/16

5/16

MCH-025-2.5U

1/2-20

38.35

18.54

16.25

5.84

14.28

15.87

30.98

3/8

1/4

MCH-03-2U

7/16-20

39.62

19.30

16.76

4.31

15.87

17.46

32.25

3/8

3/8

MCH-03-3U

9/16-18

39.62

19.30

16.76

7.11

15.87

17.46

32.25

1/2

1/2

MCH-04-4U

3/4-16

45.97

21.84

22.86

9.90

20.64

22.22

35.81

3/4

3/4

MCH-06-6U

1-1/16-12

53.34

21.84

24.38

15.49

28.58

28.58

43.18

1

1

MCH-08-8U

1-5/16-12

61.46

26.41

31.24

21.33

34.92

38.10

49.27
