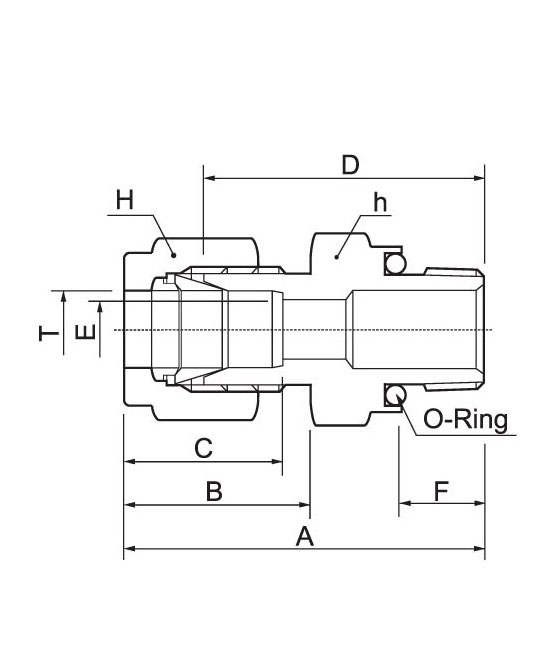

Tube fitting MCOP-S

T

TUBE

O.D.

PT-NPT

MALE

PIPE

SIZE

CATALOG

NUMBER

A

B

C

D

E

F

G

H

0-Ring

Unifom

Size Number

1/8

1/8

MCOP-01-1

32.76

15.24

12.70

19.05

2.28

11.11

26.16

7.11

-111

1/4

1/8

MCOP-02-1

35.05

17.78

15.24

19.05

4.82

14.28

27.68

7.11

-111

1/4

1/4

MCOP-02-2

38.35

17.78

15.24

23.81

4.82

14.28

30.98

9.65

-113

3/8

1/4

MCOP-03-2

39.87

19.30

16.76

23.81

7.11

17.46

32.51

9.65

-113

3/8

3/8

MCOP-03-3

41.40

19.30

16.76

28.58

7.11

17.46

34.03

10.41

-116

3/8

1/2

MCOP-03-4

46.99

19.30

16.76

33.33

7.11

17.46

39.62

13.46

-212

1/2

1/2

MCOP-04-4

49.78

21.84

22.86

33.33

10.41

22.22

39.62

13.46

-212
