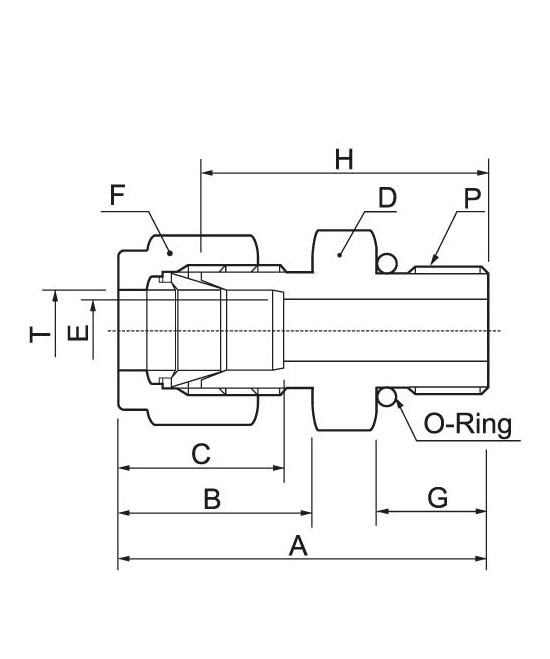

Tube fitting MCS-S

T

TUBE

O.D.

STRAIGHT

THREAD

P(U)

CATALOG

NUMBER

A

B

C

D

E

F

G

H

0-Ring

Unifom

Size Number

1/8

5/16-24

MCS-01-1U

29.97

15.24

12.70

11.11

2.28

11.11

7.62

23.26

-902

1/4

7/16-20

MCS-02-2U

34.03

17.78

15.24

14.28

4.82

14.28

9.14

26.67

-904

1/4

9/16-18

MCS-02-3U

35.56

17.78

15.24

17.46

4.82

14.28

9.90

28.19

-906

1/4

3/4-16

MCS-02-4U

37.59

17.78

15.24

22.22

4.82

14.28

11.17

30.22

-908

1/4

7/8-14

MCS-02-5U

40.64

17.78

15.24

25.40

4.82

14.28

12.70

33.27

-910

5/16

1/2-20

MCS-025-5U

34.79

18.54

16.25

15.87

5.84

15.87

9.14

27.43

-905

3/8

7/16-20

MCS-03-2U

35.56

19.30

16.76

15.87

5.08

17.46

9.14

28.19

-904

3/8

9/16-18

MCS-03-3U

37.08

19.30

16.76

17.46

7.11

17.46

9.90

29.71

-906

3/8

3/4-16

MCS-03-4U

39.11

19.30

16.76

22.22

7.11

17.46

11.17

31.75

-908

3/8

7/8-14

MCS-03-5U

42.16

19.30

16.76

25.40

7.11

17.46

12.70

34.79

-910

1/2

9/16-18

MCS-04-3U

39.11

21.84

22.86

20.64

7.11

22.22

9.90

28.95

-906

1/2

3/4-16

MCS-04-4U

41.91

21.84

22.86

22.22

10.41

22.22

11.17

31.75

-908

1/2

7/8-14

MCS-04-5U

44.95

21.84

22.86

25.40

10.41

22.22

12.70

34.79

-910

1/2

1-1/16-12

MCS-04-6U

49.02

21.84

22.86

31.75

10.41

22.22

14.98

38.86

-912

5/8

3/4-16

MCS-05-4U

41.91

21.84

24.38

23.81

10.66

25.40

11.17

31.75

-908

5/8

7/8-14

MCS-05-5U

45.21

21.84

24.38

25.40

12.70

25.40

12.70

35.05

-910

3/4

3/4-16

MCS-06-4U

45.97

21.84

24.38

26.98

10.66

28.57

11.17

35.81

-908

3/4

1-1/16-12

MCS-06-6U

49.02

21.84

24.38

31.75

15.74

28.57

14.98

38.86

-912

7/8

1-3/16-12

MCS-07-7U

49.02

21.84

25.90

34.92

18.28

31.75

14.98

38.86

-914

1

1-1/16-12

MCS-08-6U

53.34

26.41

31.24

34.92

16.76

38.10

14.98

41.14

-912

1

1-5/16-12

MCS-08-8U

54.35

26.41

31.24

38.10

22.35

38.10

14.98

42.16

-916
