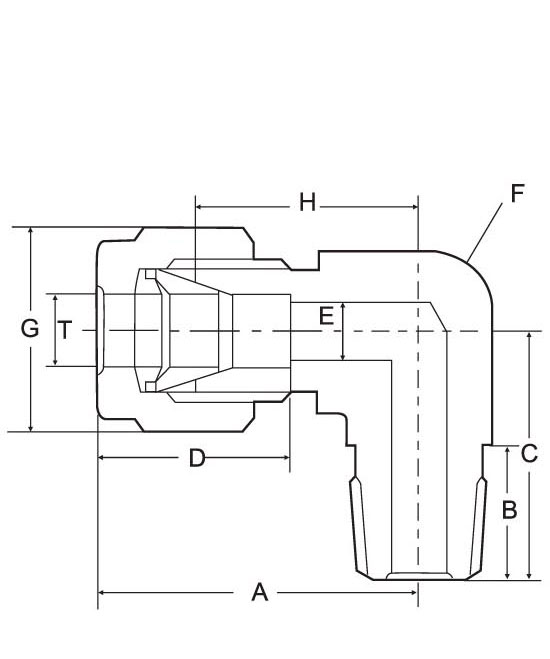

Tube fitting ME-S-1

T

TUBE

O.D.

PT-NPT

MALE

PIPE

SIZE

CATALOG

NUMBER

A

B

C

D

E

F

G

H

1/16

1/8

ME-005-1

19.1

10

18.1

8.6

1

10

10

15.2

1/16

1/4

ME-005-2

21.8

13

21.6

8.6

1

14

10

18.0

1/8

1/8

ME-01-1

23.6

10

18.1

12.7

3

12

10

17.0

1/8

1/4

ME-01-2

24.6

13

22.2

12.7

3

14

10

18.0

1/8

3/8

ME-01-3

28.4

14

26.8

12.7

3

17

10

21.8

1/8

1/2

ME-01-4

31.3

17

32.7

12.7

3

22

10

24.7

3/16

1/8

ME-015-1

25.4

10

19.1

13.7

3

12

12

18.8

3/16

1/4

ME-015-2

25.4

13

22.2

13.7

3

14

12

18.6

1/4

1/8

ME-02-1

27.0

10

19.1

15.3

5

12

14

19.6

1/4

1/4

ME-02-2

27.0

13

22.2

15.3

5

14

14

19.6

1/4

3/8

ME-02-3

29.7

14

26.0

15.3

5

17

14

22.4

1/4

1/2

ME-024

31.8

17

31.0

15.3

5

22

14

24.4

3/8

1/8

ME-03-1

30.5

10

21.1

16.8

6

17

17

21.3

3/8

1/4

ME-03-2

30.5

13

24.2

16.8

8

17

17

21.3

3/8

3/8

ME-03-3

31.2

14

26.0

16.8

8

17

17

23.1

3/8

1/2

ME-03W

33.3

17

31.0

16.8

8

22

17

26.0

1/2

1/8

ME-04-1

36.1

10

25.7

22.8

10

22

22

26.0

1/2

1/4

ME-04-2

36.1

13

27.0

22.8

10

22

22

26.0

1/2

3/8

ME-04-3

36.1

14

29.0

22.8

10

22

22

26.0

1/2

1/2

ME-04^

36.1

17

31.0

22.8

10

22

22

26.0

1/2

3/4

ME-04-6

40.0

19

36.8

22.8

10

27

22

29.7

1/2

1

ME-04-8

45.3

22

45.2

22.8

10

34

22

35.2

5/8

3/8

ME-05-3

38.1

14

30.0

24.4

12

23

27

27.9

5/8

1/2

ME-05^

38.1

17

33.1

24.4

12

24

27

27.9

5/8

3/4

ME-05-6

40.0

19

36.8

24.4

12

24

27

29.7

3/4

1/2

ME-064

40.0

17

34.8

24.4

15

27

30

29.7

3/4

3/4

ME-06-6

40.5

19

36.8

24.4

15

27

30

29.7

1

3/4

ME-08-3

49.0

19

41.7

31.3

21

34

38

36.8

1

1

ME-08-8

49.0

22

44.5

31.3

21

34

38

36.8
