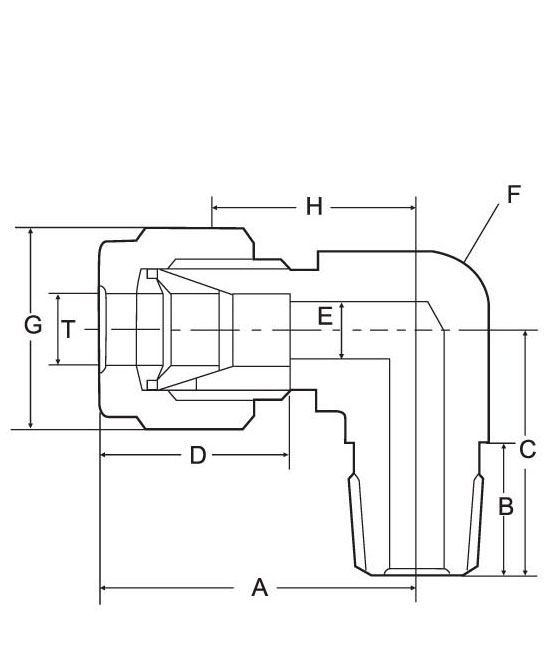

MALE ELBOW (METRIC)
|
T TUBE O.D. |
PT-NPT MALE PIPE SIZE |
CATALOG NUMBER |
A |
B |
C |
D |
E |
F |
G |
H |
|
3 |
1/8 |
ME-3-1 |
25.4 |
10 |
19.8 |
13 |
2.4 |
12 |
12 |
18.8 |
|
3 |
1/4 |
ME-3-2 |
26.6 |
13 |
24.0 |
13 |
2.4 |
14 |
12 |
20.0 |
|
4 |
1/8 |
ME-4-1 |
25.4 |
10 |
19.1 |
13.7 |
3 |
12 |
12 |
18.8 |
|
4 |
1/4 |
ME-4-2 |
26.6 |
13 |
22.2 |
13.7 |
3 |
14 |
12 |
20.0 |
|
4 |
3/8 |
ME-4-3 |
28.4 |
14 |
26.0 |
13.7 |
3 |
17 |
12 |
21.8 |
|
4 |
1/2 |
ME« |
31.3 |
17 |
31.0 |
13.7 |
3 |
22 |
12 |
24.7 |
|
6 |
1/8 |
ME-6-1 |
27.0 |
10 |
19.1 |
15.3 |
5 |
12 |
14 |
19.6 |
|
6 |
1/4 |
ME-6-2 |
27.0 |
13 |
22.2 |
15.3 |
5 |
14 |
14 |
19.6 |
|
6 |
3/8 |
ME-6-3 |
29.8 |
14 |
26.0 |
15.3 |
5 |
17 |
14 |
22.4 |
|
6 |
1/2 |
ME-6M |
31.8 |
17 |
31.0 |
15.3 |
5 |
22 |
14 |
24.4 |
|
8 |
1/8 |
ME-8-1 |
28.8 |
10 |
20.1 |
16.2 |
6 |
14 |
17 |
21.3 |
|
8 |
1/4 |
ME-8-2 |
28.8 |
13 |
23.2 |
16.2 |
6 |
14 |
17 |
21.3 |
|
8 |
3/8 |
ME-8-3 |
30.6 |
14 |
26.0 |
16.2 |
6 |
17 |
17 |
23.1 |
|
8 |
1/2 |
ME-84 |
32.6 |
17 |
31.0 |
16.2 |
6 |
22 |
17 |
25.1 |
|
10 |
1/8 |
ME-10-1 |
31.5 |
10 |
21.9 |
17.2 |
6 |
17 |
19 |
23.9 |
|
10 |
1/4 |
ME-10-2 |
31.5 |
13 |
25.0 |
17.2 |
8 |
17 |
19 |
23.9 |
|
10 |
3/8 |
ME-10-3 |
31.5 |
14 |
26.0 |
17.2 |
8 |
17 |
19 |
23.9 |
|
10 |
1/2 |
ME-10-4 |
33.5 |
17 |
31.0 |
17.2 |
8 |
22 |
19 |
25.9 |
|
12 |
1/8 |
ME-12-1 |
36.0 |
10 |
25.7 |
22.8 |
10 |
22 |
22 |
25.9 |
|
12 |
1/4 |
ME-12-2 |
36.0 |
13 |
27.0 |
22.8 |
10 |
22 |
22 |
25.9 |
|
12 |
3/8 |
ME-12-3 |
36.0 |
14 |
28.0 |
22.8 |
10 |
22 |
22 |
25.9 |
|
12 |
1/2 |
ME-12-4 |
36.0 |
17 |
31.0 |
22.8 |
10 |
22 |
22 |
25.9 |
|
12 |
3/4 |
ME-12-6 |
39.8 |
19 |
26.8 |
22.8 |
10 |
27 |
22 |
29.7 |
|
12 |
1 |
ME-12-8 |
45.3 |
22 |
45.2 |
22.8 |
10 |
34 |
22 |
35.2 |
|
14 |
3/8 |
ME-14-3 |
38.0 |
14 |
29.0 |
24.4 |
10 |
24 |
27 |
27.9 |
|
14 |
1/2 |
ME-14-4 |
38.0 |
17 |
33.1 |
24.4 |
10 |
24 |
27 |
27.9 |
|
14 |
3/4 |
ME-14-6 |
39.8 |
19 |
36.8 |
24.4 |
10 |
27 |
27 |
29.7 |
|
15 |
3/8 |
ME-15-3 |
38.0 |
14 |
29.0 |
24.4 |
11 |
24 |
27 |
27.9 |
|
15 |
1/2 |
ME-15-4 |
38.0 |
17 |
33.1 |
24.4 |
11 |
24 |
27 |
27.9 |
|
15 |
3/4 |
ME-15-6 |
39.8 |
19 |
36.8 |
24.4 |
11 |
27 |
27 |
29.7 |
|
16 |
3/8 |
ME-16-3 |
38.0 |
14 |
29.0 |
24.4 |
12 |
24 |
27 |
27.9 |
|
16 |
1/2 |
ME-16-4 |
38.0 |
17 |
33.1 |
24.4 |
12 |
24 |
27 |
27.9 |
|
16 |
3/4 |
ME-16-6 |
39.8 |
19 |
36.8 |
24.4 |
12 |
27 |
27 |
29.7 |
|
18 |
3/8 |
ME-18-3 |
39.8 |
14 |
32.5 |
24.4 |
14 |
27 |
30 |
29.7 |
|
18 |
1/2 |
ME-18-4 |
39.8 |
17 |
34.8 |
24.4 |
14 |
27 |
30 |
29.7 |
|
18 |
3/4 |
ME-18-6 |
39.8 |
19 |
36.8 |
24.4 |
14 |
27 |
30 |
29.7 |
|
20 |
1/2 |
ME-20-4 |
44.6 |
17 |
39.7 |
26.0 |
16 |
30 |
32 |
34.5 |
|
20 |
3/4 |
ME-20-6 |
44.6 |
19 |
41.7 |
26.0 |
16 |
30 |
32 |
34.5 |
|
22 |
1/2 |
ME-22-4 |
44.6 |
17 |
39.7 |
26.0 |
18 |
30 |
32 |
34.5 |
|
22 |
3/4 |
ME-22-6 |
44.6 |
19 |
41.7 |
26.0 |
18 |
30 |
32 |
34.5 |
|
22 |
1 |
ME-22-8 |
44.6 |
22 |
44.5 |
26.0 |
18 |
34 |
32 |
34.5 |
|
25 |
1/2 |
ME-25-4 |
49.1 |
17 |
39.7 |
31.3 |
21 |
34 |
38 |
36.8 |
|
25 |
3/4 |
ME-25-6 |
49.1 |
19 |
41.7 |
31.3 |
21 |
34 |
38 |
36.8 |
|
25 |
1 |
ME-25-8 |
49.1 |
22 |
44.5 |
31.3 |
21 |
34 |
38 |
36.8 |
All dimensions are in mullimeters unless otherwise specified, only for reference subject to change.
