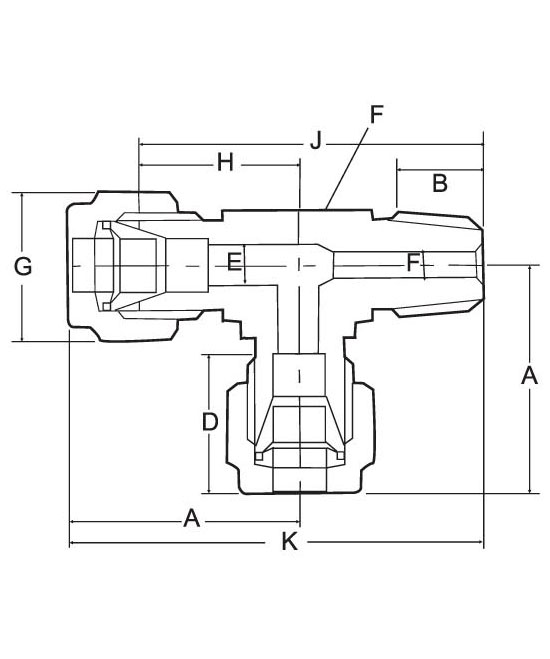

Tube fitting MRT-S

T

TUBE

O.D.

PT-NPT

MALE

PIPE

SIZE

CATALOG

NUMBER

A

B

D

E

F

G

H

J

K

4

1/8

MRT-4-1

25.4

10

15.3

3

12

12

18.8

37.9

44.5

4

1/4

MRT-4-2

25.4

13

15.3

3

14

12

18.8

41.0

47.6

6

1/8

MRT-6-1

27.0

10

15.3

5

12

14

19.6

38.7

46.1

6

1/4

MRT-6-2

27.0

13

15.3

5

14

14

19.6

41.8

49.2

6

3/8

MRT-6-3

29.8

14

15.3

5

17

14

22.4

48.4

55.8

6

1/2

MRT-6-4

31.8

17

15.3

5

22

14

24.4

55.4

62.8

8

1/8

MRT-8-1

28.8

10

16.2

6

14

17

21.3

41.4

48.9

8

1/4

MRT-8-2

28.8

13

16.2

6

14

17

21.3

46.3

52.0

8

3/8

MRT-8-3

28.8

14

16.2

6

17

17

2.1

49.1

54.8

8

1/2

MRT-8-4

30.6

17

16.2

6

22

17

25.1

56.1

61.6

10

1/8

MRT-10-1

31.5

10

17.2

8

17

19

23.9

45.8

53.4

10

1/4

MRT-10-2

31.5

13

17.2

8

17

19

23.9

48.9

56.5

10

3/8

MRT-10-3

31.5

14

17.2

8

17

19

23.9

49.9

57.5

10

1/2

MRT-10-4

33.5

17

17.2

8

22

19

25.9

56.9

64.5

12

1/8

MRT-12-1

36.0

10

22.8

10

22

22

25.9

51.6

61.7

12

1/4

MRT-12-2

36.0

13

22.8

10

22

22

25.9

52.9

63.0

12

3/8

MRT-12-3

36.0

14

22.8

10

22

22

25.9

53.9

64.0

12

1/2

MRT-12-4

36.0

17

22.8

10

22

22

25.9

56.9

67.0

12

3/4

MRT-12-6

39.8

19

22.8

10

27

22

29.7

66.9

76.6

12

1

MRT-12-8

45.3

22.8

10

34

22

35.2

80.4

90.5

14

3/8

MRT-14-3

38.0

14

24.4

10

24

27

27.9

56.9

67.0

14

1/2

MRT-14-4

38.0

17

24.4

10

24

27

27.9

61.0

71.1

14

3/4

MRT-14-6

39.8

19

24.4

10

27

27

29.7

66.5

76.6

15

3/8

MRT-15-3

38.0

14

24.4

10

24

27

27.9

56.9

67.0

15

1/2

MRT-15-4

38.0

17

24.4

10

24

27

27.9

61.0

71.1

15

3/4

MRT-15-6

39.8

19

24.4

10

27

27

29.7

66.5

76.6

16

3/8

MRT-16-3

38.0

14

24.4

12

24

27

27.9

56.9

67.0

16

1/2

MRT-16-4

38.0

17

24.4

12

24

27

27.9

61.0

71.1

16

3/4

MRT-16-6

39.8

19

24.4

12

27

27

29.7

66.5

76.6

18

3/8

MRT-18-3

39.8

14

24.4

14

27

30

29.7

62.2

72.3

18

1/2

MRT-18-4

39.8

17

24.4

14

27

30

29.7

64.5

74.6

18

3/4

MRT-18-6

39.8

19

24.4

14

27

30

29.7

66.5

76.6

20

1/2

MRT-20-4

44.6

17

26.0

16

30

32

34.5

74.2

84.3

20

3/4

MRT-20-6

44.6

19

26.0

16

30

32

34.5

76.2

96.3

22

1/2

MRT-22-4

44.6

17

26.0

18

30

32

34.5

74.2

84.3

22

3/4

MRT-22-6

44.6

19

26.0

18

30

32

34.5

76.2

86.3

25

1/2

MRT-25-4

49.1

17

31.3

21

34

38

36.8

76.5

88.8

25

3/4

MRT-25-6

49.1

19

31.3

21

34

38

36.8

78.5

90.8

25

1

MRT-25-8

49.1

22

31.3

21

34

38

36.8

81.3

93.6

1/8

1/8

MRT-01-1

23.6

10

12.7

3

12

12

17.0

35.1

41.7

1/8

1/4

MRT-01-2

24.6

13

12.7

3

14

12

18.0

40.2

46.8

1/4

1/8

MRT-02-1

27.0

10

15.2

5

12

14

19.6

38.7

46.1

1/4

1/4

MRT-02-2

27.0

13

15.2

5

14

14

19.6

41.8

49.2

1/4

3/8

MRT-02-3

29.8

14

15.2

5

17

14

22.4

48.4

55.8

1/4

1/2

MRT-02-4

31.8

17

15.2

5

22

14

24.4

55.4

62.8

3/8

1/8

MRT-03-1

30.5

11

16.8

8

17

17

21.3

42.4

51.6

3/8

1/4

MRT-03-2

30.5

13

16.8

8

17

17

21.3

45.5

54.7

3/8

3/8

MRT-03-3

31.2

14

16.8

8

17

17

23.1

49.1

57.2

3/8

1/2

MRT-03-4

33.3

17

16.8

8

22

17

26.0

57.0

64.3

1/2

1/8

MRT-04-1

36.0

11

22.8

10

22

22

25.9

51.6

61.7

1/2

1/4

MRT-04-2

36.0

13

22.8

10

22

22

25.9

52.9

63.0

1/2

3/8

MRT-04-3

36.0

14

22.8

10

22

22

25.9

53.9

64.0

1/2

1/2

MRT-04-4

36.0

17

22.8

10

22

22

25.9

56.9

67.0

1/2

3/4

MRT-04-6

39.8

19

22.8

10

27

22

29.7

66.5

76.6

1/2

1

MRT-04-8

45.3

22

22.8

10

34

22

35.2

80.4

90.5

5/8

3/8

MRT-05-3

38.1

14

24.4

12

24

27

27.9

57.9

68.1

5/8

1/2

MRT-05-4

38.1

17

24.4

12

24

27

27.9

61.0

71.2

5/8

3/4

MRT-05-6

40.0

19

24.4

12

27

27

29.7

66.5

76.8

3/4

1/2

MRT-06-4

40.0

17

24.4

15

27

30

29.7

66.5

76.8

3/4

3/4

MRT-06-6

40.0

19

24.4

15

34

30

29.7

66.5

76.8

1

3/4

MRT-08-6

49.1

19

31.3

21

34

38

36.8

78.5

90.8

1

1

MRT-08-8

49.1

22

31.3

21

34

38

36.8

81.3

93.6
