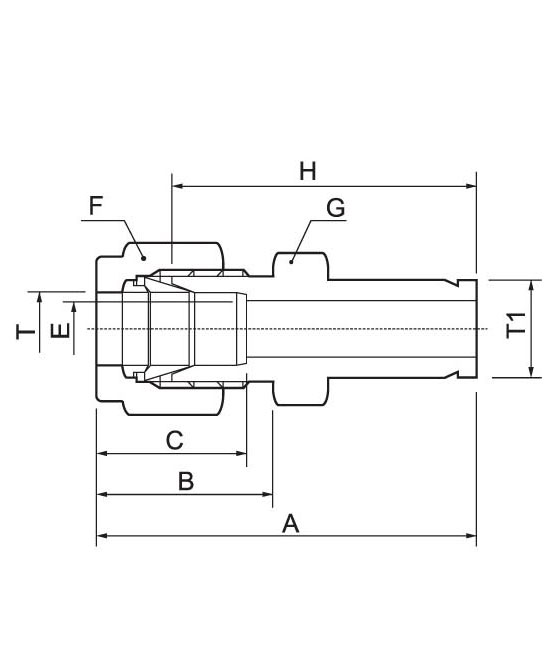

REDUCER
(METRIC) Connects metric tube to fractional LF-Lok port
|
T TUBE O.D. |
T1 TUBE |
CATALOG NUMBER |
A |
B |
C |
E |
F |
G |
H |
|
2 |
3.17 |
ODTA-2-01 |
33.5 |
15.3 |
12.9 |
1.7 |
12 |
12 |
26.9 |
|
3 |
3.17 |
ODTA-3-01 |
33.5 |
15.3 |
12.9 |
2.0 |
12 |
12 |
26.9 |
|
3 |
6.35 |
ODTA-3-02 |
36.1 |
15.3 |
12.9 |
2.4 |
12 |
12 |
29.5 |
|
4 |
3.17 |
ODTA-4-01 |
37.1 |
16.1 |
13.7 |
2.4 |
12 |
12 |
30.5 |
|
4 |
6.35 |
ODTA-4-02 |
36.9 |
17.7 |
15.3 |
2.0 |
14 |
14 |
29.5 |
|
6 |
3.17 |
ODTA-6-01 |
39.2 |
17.7 |
15.3 |
4.8 |
14 |
14 |
31.8 |
|
6 |
6.35 |
ODTA-6-02 |
39.9 |
17.7 |
15.3 |
4.8 |
14 |
14 |
32.5 |
|
6 |
9.52 |
ODTA-6-03 |
40.7 |
17.7 |
15.3 |
4.8 |
14 |
14 |
33.3 |
|
6 |
12.7 |
ODTA-6-04 |
46.3 |
17.7 |
15.3 |
4.8 |
14 |
14 |
38.9 |
|
8 |
9.52 |
ODTA-8-03 |
42.0 |
18.6 |
16.2 |
6.4 |
15 |
16 |
34.5 |
|
8 |
12.7 |
ODTA-8-04 |
47.6 |
18.6 |
16.2 |
6.4 |
15 |
16 |
40.1 |
|
10 |
9.52 |
ODTA-10-03 |
44.2 |
19.5 |
17.2 |
7.1 |
18 |
19 |
36.6 |
|
10 |
12.7 |
ODTA-10-04 |
49.8 |
19.5 |
17.2 |
7.9 |
18 |
19 |
42.2 |
|
12 |
12.7 |
ODTA-12-04 |
52.3 |
22.0 |
22.8 |
9.5 |
22 |
22 |
42.2 |
|
12 |
19.05 |
ODTA-12-06 |
53.8 |
22.0 |
22.8 |
9.5 |
22 |
22 |
43.7 |
|
18 |
19.05 |
ODTA-18-06 |
56.1 |
22.0 |
24.4 |
15.1 |
27 |
30 |
46.0 |
|
18 |
25.4 |
ODTA-18-08 |
62.4 |
22.0 |
24.4 |
15.1 |
27 |
30 |
52.3 |
|
25 |
25.4 |
ODTA-25-08 |
69.5 |
26.5 |
31.3 |
20.2 |
35 |
38 |
57.2 |
(METRIC) Connects metric tube to fractional LF-Lok port
|
2 |
3 |
ODTA-2-3 |
35.3 |
15.3 |
12.9 |
1.7 |
12 |
12 |
26.9 |
|
3 |
4 |
ODTA-3-4 |
35.0 |
15.3 |
12.9 |
2.4 |
12 |
12 |
28.4 |
|
3 |
6 |
ODTA-3-6 |
36.1 |
15.3 |
12.9 |
2.4 |
12 |
12 |
29.5 |
|
3 |
10 |
ODTA-3-10 |
38.4 |
15.3 |
12.9 |
2.4 |
12 |
12 |
31.8 |
|
4 |
6 |
ODTA-4-6 |
37.1 |
16.1 |
13.7 |
2.4 |
12 |
12 |
30.5 |
|
6 |
3 |
ODTA-6-3 |
36.9 |
17.7 |
15.3 |
1.8 |
14 |
14 |
29.5 |
|
6 |
8 |
ODTA-6-8 |
39.9 |
17.7 |
15.3 |
4.8 |
14 |
14 |
32.5 |
|
6 |
10 |
ODTA-6-10 |
40.7 |
17.7 |
15.3 |
4.8 |
14 |
14 |
33.3 |
|
6 |
12 |
ODTA-6-12 |
46.3 |
17.7 |
15.3 |
4.8 |
14 |
14 |
38.9 |
|
8 |
6 |
ODTA-8-6 |
40.3 |
18.6 |
16.2 |
4.6 |
15 |
16 |
32.8 |
|
8 |
10 |
ODTA-8-10 |
42.0 |
18.6 |
16.2 |
6.4 |
15 |
16 |
34.5 |
|
8 |
12 |
ODTA-8-12 |
47.6 |
18.6 |
16.2 |
6.4 |
15 |
16 |
40.1 |
|
10 |
6 |
ODTA-10-6 |
42.4 |
19.5 |
17.2 |
4.6 |
18 |
19 |
34.8 |
|
10 |
12 |
ODTA-10-12 |
49.8 |
19.5 |
17.2 |
7.9 |
18 |
19 |
42.2 |
|
10 |
15 |
ODTA-10-15 |
51.3 |
19.5 |
17.2 |
7.9 |
18 |
19 |
43.7 |
|
10 |
18 |
ODTA-10-18 |
51.3 |
19.5 |
17.2 |
7.9 |
19 |
19 |
43.7 |
|
12 |
6 |
ODTA-12-6 |
44.9 |
22.0 |
22.8 |
4.6 |
22 |
22 |
34.8 |
|
12 |
10 |
ODTA-12-10 |
46.7 |
22.0 |
22.8 |
7.7 |
22 |
22 |
36.6 |
|
12 |
16 |
ODTA-12-16 |
53.8 |
22.0 |
22.8 |
9.5 |
22 |
22 |
43.7 |
|
12 |
18 |
ODTA-12-18 |
53.8 |
22.0 |
22.8 |
9.5 |
22 |
22 |
43.7 |
|
12 |
20 |
ODTA-12-20 |
56.1 |
22.0 |
22.8 |
9.5 |
22 |
22 |
46.0 |
|
12 |
22 |
ODTA-12-22 |
56.1 |
22.0 |
22.8 |
9.5 |
24 |
22 |
46.0 |
|
12 |
25 |
ODTA-12-25 |
62.4 |
22.0 |
22.8 |
9.5 |
27 |
22 |
52.3 |
|
16 |
12 |
ODTA-16-12 |
53.0 |
22.0 |
24.4 |
9.1 |
24 |
25 |
42.9 |
|
18 |
12 |
ODTA-18-12 |
54.6 |
22.0 |
24.4 |
9.1 |
27 |
30 |
44.5 |
|
18 |
16 |
ODTA-12-16 |
56.1 |
22.0 |
24.4 |
12.7 |
27 |
30 |
46.0 |
|
18 |
20 |
ODTA-18-20 |
57.6 |
22.0 |
24.4 |
15.1 |
27 |
30 |
47.5 |
|
18 |
22 |
ODTA-18-22 |
57.6 |
22.0 |
24.4 |
15.1 |
27 |
30 |
47.5 |
|
18 |
25 |
ODTA-18-25 |
62.4 |
22.0 |
24.4 |
15.1 |
27 |
30 |
52.3 |
|
20 |
16 |
ODTA-20-16 |
57.9 |
22.0 |
26.0 |
12.7 |
30 |
32 |
47.8 |
|
20 |
18 |
ODTA-20-18 |
57.9 |
22.0 |
26.0 |
13.9 |
30 |
32 |
47.8 |
|
20 |
22 |
ODTA-20-22 |
59.4 |
22.0 |
26.0 |
15.8 |
30 |
32 |
49.3 |
|
20 |
25 |
ODTA-20-25 |
64.2 |
22.0 |
26.0 |
15.8 |
30 |
32 |
54.1 |
|
22 |
18 |
ODTA-22-18 |
57.9 |
22.0 |
26.0 |
13.9 |
30 |
32 |
47.8 |
|
22 |
20 |
ODTA-22-20 |
59.4 |
22.0 |
26.0 |
15.1 |
30 |
32 |
49.3 |
|
22 |
25 |
ODTA-22-25 |
64.2 |
22.0 |
26.0 |
18.3 |
30 |
32 |
54.1 |
|
25 |
18 |
ODTA-25-18 |
63.1 |
26.5 |
31.3 |
13.9 |
35 |
38 |
50.8 |
|
25 |
20 |
ODTA-25-20 |
64.6 |
26.5 |
31.3 |
15.1 |
35 |
38 |
52.3 |
All dimensions are in mullimeters unless otherwise specified, only for reference subject to change.
