Tube fitting RTS-S

Contact Us DownLoad PDF

Details

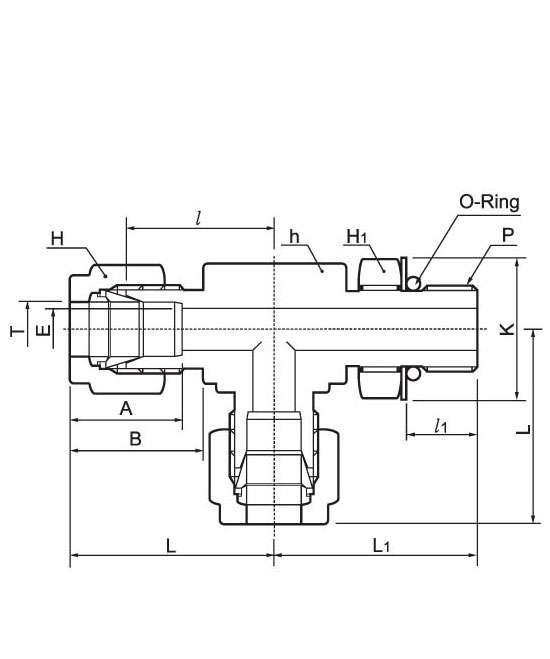

POSITIONABLE SAE MALE RUN TEE

Connects fractional tube to SAE straight thread boss



T

TUBE

O.D.

STRAIGHT

THREAD

P(U)

CATALOG

NUMBER

A

B

E

h

H

H1

l

l1

L

L1

K

0-Ring

Unifom

Size Number

1/4

7/16-20

RTS-02-2U

15.24

17.78

4.82

12.70

14.28

14.28

21.08

9.90

28.44

28.44

16.51

-904

3/8

9/16-18

RTS-03-3U

16.76

19.30

7.11

15.87

17.46

17.46

24.63

11.17

32.00

32.25

20.06

-906

1/2

3/4-16

RTS-04-4U

22.86

21.84

10.41

20.64

22.22

22.22

27.43

12.70

37.59

37.84

25.65

-908

3/4

1-1/16-12

RTS-06-6U

24.38

21.84

15.74

26.98

28.58

31.75

31.24

16.76

41.40

48.76

36.57

-912

1

1-5/16-12

RTS-08-8U

31.24

26.41

22.35

34.92

38.10

38.10

38.35

16.76

50.54

50.54

43.94

-916
