Tube fitting RUT-S

Contact Us DownLoad PDF

Details

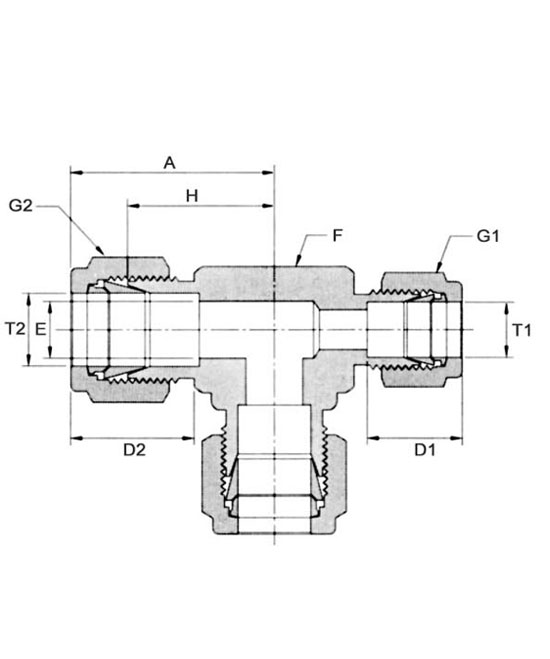

UNION TEE

(METRIC)



TUBE

T1

O.D.

T2

CATALOG

NUMBER

A

D1

D2

E

F

G1

G2

H

1/4

3/8

RUT-03-02

30.5

15.2

19.3

4.8

15.87

14..28

17.46

21.3

1/4

1/2

RUT-04-02

36.1

15.2

21.8

4.8

20.63

14.28

20.63

25.9

3/8

1/2

RUT-04-03

36.1

16.8

21.8

7.0

20.63

17.46

20.63

25.9

3/8

5/8

RUT-05-03

38.9

16.8

21.8

7.0

25.40

17.46

25.40

28.7

3/8

3/4

RUT-06-03

39.9

16.8

21.8

7.0

26.98

17.46

28.57

29.7

1/2

3/4

RUT-06-04

39.9

22.9

21.8

10.0

26.98

22.22

28.57

29.7

3/8

1

RUT-08-03

49.0

16.8

26.4

7.0

34.92

17.46

38.10

36.8

1/2

1

RUT-08-04

49.0

22.9

26.4

10.0

34.92

22.22

38.10

36.8

3/4

1

RUT-08-06

49.0

24.4

26.4

16.0

34.92

28.57

38.10

36.8



All dimensions are in mullimeters unless otherwise specified, only for reference subject to change.
