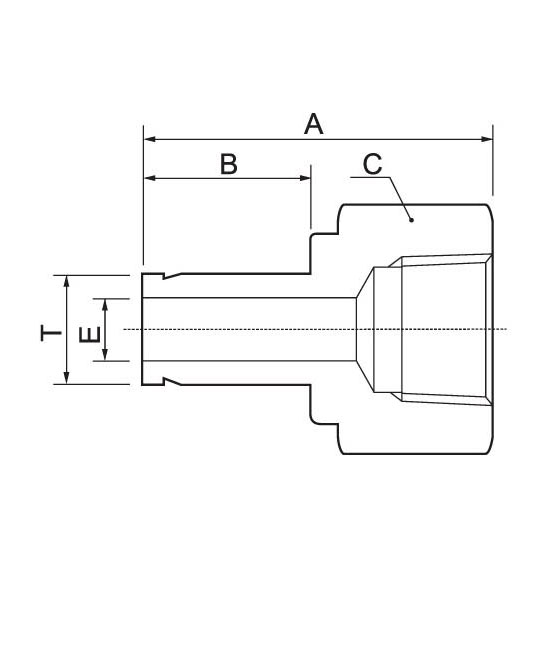

Tube fitting TAF-S

T

TUBE

O.D.

PT-NPT

FEMALE

PIPE

SIZE

CATALOG

NUMBER

A

B

C

E

1/8

1/8

TAF-01-1

31.50

13.45

14.28

1.77

1/8

1/4

TAF-01-2

35.30

13.45

19.05

1.77

3/16

1/8

TAF-015-1

32.00

14.20

14.28

3.04

3/16

1/4

TAF-015-2

35.81

14.20

19.05

3.04

1/4

1/8

TAF-02-1

33.02

15.75

14.28

4.57

1/4

1/4

TAF-02-2

37.10

15.75

19.05

4.57

1/4

3/8

TAF-02-3

39.37

15.75

22.22

4.57

1/4

1/2

TAF-02-4

45.50

15.75

26.98

4.57

5/16

1/8

TAF-025-1

34.29

16.80

14.28

6.35

5/16

1/4

TAF-025-2

37.59

16.80

19.05

6.35

3/8

1/8

TAF-03-1

34.29

17.50

14.28

7.11

3/8

1/4

TAF-03-2

38.10

17.50

19.05

7.11

3/8

3/8

TAF-03-3

40.38

17.50

22.22

7.11

3/8

1/2

TAF-03-4

46.73

17.50

26.98

7.11

1/2

1/4

TAF-04-2

43.43

23.20

19.05

9.90

1/2

3/8

TAF-04-3

45.46

23.20

22.22

9.90

1/2

1/2

TAF-04-4

51.80

23.20

26.98

9.90

5/8

3/8

TAF-05-3

48.26

24.70

22.22

12.70

5/8

1/2

TAF-05-4

53.84

24.70

26.98

12.70

5/8

3/4

TAF-05-6

55.37

24.70

33.33

12.70

3/4

1/2

TAF-06-4

52.83

24.70

26.98

14.98

3/4

3/4

TAF-06-6

54.86

24.70

33.33

14.98

3/4

1

TAF-06-8

58.42

24.70

41.27

14.98

7/8

3/4

TAF-07-6

57.15

26.70

33.33

17.27

1

3/4

TAF-08-6

60.70

31.70

33.33

20.06

1

1

TAF-08-8

64.26

31.70

41.27

20.06

3

1/8

TAF-3-1

31.15

13.15

14

1.8

6

1/8

TAF-6-1

32.50

15.75

14

4.6

6

1/4

TAF-6-2

37.10

15.75

19

4.6

8

1/4

TAF-8-2

37.60

16.50

19

6.3

10

1/4

TAF-10-2

38.10

17.50

19

7.7

10

3/8

TAF-10-3

40.10

17.50

22

7.7

10

1/2

TAF-10-4

46.50

17.50

27

7.7

12

1/4

TAF-12-2

43.70

23.50

19

9.1

12

3/8

TAF-12-3

46.00

23.50

22

9.1

12

1/2

TAF-12-4

52.30

23.50

27

9.1

18

3/4

TAF-18-6

54.80

24.90

32

13.9
