Tube fitting TAM-S

Contact Us DownLoad PDF

Details

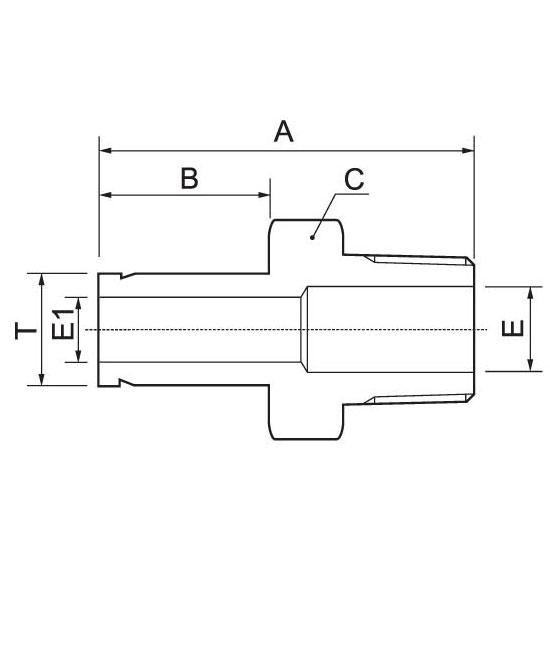

MALE ADAPTER

Connects fractional LF-Lok port to female PT(NPT) thread



T

TUBE

O.D.

PT-NPT

FEMALE

PIPE

SIZE

CATALOG

NUMBER

A

B

C

E

E1

1/8

1/8

TAM-01-1

29.50

13.45

11.11

4.57

1.77

1/8

1/4

TAM-01-2

34.80

13.45

14.28

7.11

1.77

3/16

1/8

TAM-015-1

30.22

14.20

11.11

4.57

3.04

3/16

1/4

TAM-015-2

35.56

14.20

14.28

7.11

3.04

1/4

1/8

TAM-02-1

31.80

15.75

11.11

4.57

4.57

1/4

1/4

TAM-02-2

37.08

15.75

14.28

7.11

4.57

1/4

3/8

TAM-02-3

37.84

15.75

17.46

10.41

4.57

1/4

1/2

TAM-02-4

43.43

15.75

22.22

12.70

4.57

5/16

1/8

TAM-025-1

32.76

16.80

11.11

4.57

6.35

5/16

1/4

TAM-025-2

38.10

16.80

14.28

7.11

6.35

3/8

1/8

TAM-03-1

33.50

17.50

11.11

4.57

7.11

3/8

1/4

TAM-03-2

38.90

17.50

14.28

7.11

7.11

3/8

3/8

TAM-03-3

39.60

17.50

17.46

10.41

7.11

3/8

1/2

TAM-03-4

45.20

17.50

22.22

12.70

7.11

1/2

1/4

TAM-04-2

44.50

23.20

14.28

7.11

9.90

1/2

3/8

TAM-04-3

45.20

23.20

17.46

10.41

9.90

1/2

1/2

TAM-04-4

50.50

23.20

22.22

12.70

9.90

5/8

3/8

TAM-05-3

47.40

24.70

17.46

10.41

12.70

5/8

1/2

TAM-05-4

52.30

24.70

22.22

12.70

12.70

5/8

3/4

TAM-05-6

52.30

24.70

26.98

18.28

12.70

3/4

1/2

TAM-06-4

52.30

24.70

22.22

12.70

14.98

3/4

3/4

TAM-06-6

52.30

24.70

26.98

18.28

14.98

3/4

1

TAM-06-8

57.91

24.70

34.92

22.35

14.98

7/8

3/4

TAM-07-6

54.30

26.70

26.98

18.28

17.27

1

3/4

TAM-08-6

58.70

31.70

26.98

18.28

20.06

1

1

TAM-08-8

66.00

31.70

34.92

22.35

20.06



All dimensions are in mullimeters unless otherwise specified, only for reference subject to change.
