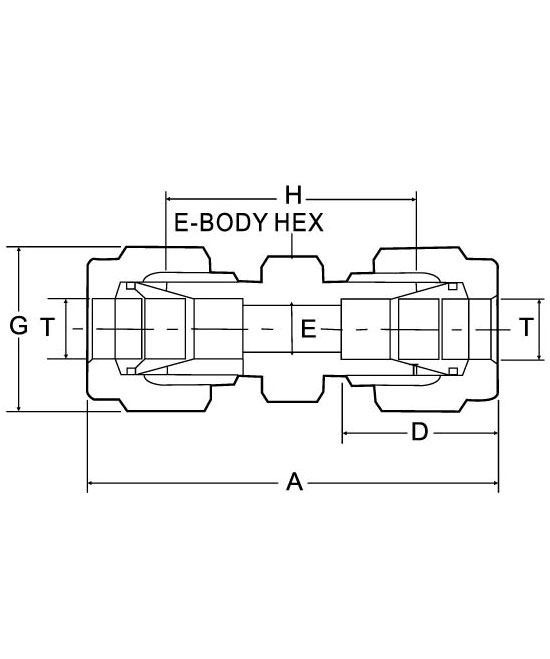

EQUAL UNION (METRIC)
|
TUBE O.D. |
CATALOG NUMBER |
A |
D |
E |
F |
G |
H |
|
2 |
U-2-0 |
35.6 |
12.9 |
1 |
10 |
10 |
22.4 |
|
3 |
U-3-0 |
35.3 |
12.9 |
2 |
10 |
10 |
22.1 |
|
4 |
U-4-0 |
37.3 |
.13.7 |
3 |
12 |
12 |
24.1 |
|
6 |
U-6-0 |
41.0 |
15.3 |
4 |
12 |
14 |
26.2 |
|
8 |
U-8-0 |
43.2 |
16.2 |
6 |
14 |
17 |
28.2 |
|
10 |
U-10-0 |
46.2 |
17.2 |
8 |
19 |
19 |
31.0 |
|
12 |
U-12-0 |
51.2 |
22.8 |
.10 |
22 |
22 |
31.0 |
|
14 |
U-14-0 |
52.0 |
24.4 |
10 |
24 |
27 |
31.8 |
|
15 |
U-15-0 |
52.0 |
24.4 |
11 |
24 |
27 |
31.8 |
|
16 |
U-16-0 |
52.0 |
24.4 |
12 |
24 |
27 |
31.8 |
|
18 |
U-18-0 |
53.5 |
24.4 |
14 |
27 |
30 |
33.3 |
|
20 |
U-20-0 |
55.0 |
26.0 |
16 |
30 |
32 |
34.8 |
|
22 |
U-22-0 |
55.0 |
26.0 |
18 |
30 |
32 |
34.8 |
|
25 |
U-25-0 |
65.0 |
31.3 |
21 |
35 |
38 |
40.4 |
(FRACTIONAL)
|
1/16 |
U-005-0 |
25.1 |
8.6 |
1 |
10 |
10 |
17.5 |
|
1/8 |
U-01-0 |
35.6 |
12.7 |
2 |
10 |
10 |
22.4 |
|
3/16 |
U-015-0 |
37.3 |
13.7 |
3 |
12 |
12 |
24.1 |
|
1/4 |
U-02-0 |
40.9 |
15.2 |
4 |
12 |
14 |
26.2 |
|
3/8 |
U-03-0 |
45.0 |
16.8 |
7 |
17 |
17 |
30.2 |
|
1/2 |
U-04-0 |
51.3 |
22.9 |
10 |
22 |
22 |
31.0 |
|
5/8 |
U-05-0 |
52.1 |
24.4 |
12 |
24 |
27 |
31.8 |
|
3/4 |
U-06-0 |
53.6 |
24.4 |
15 |
27 |
30 |
33.3 |
|
1 |
U-08-0 |
64.8 |
31.2 |
21 |
35 |
38 |
40.4 |
All dimensions are in mullimeters unless otherwise specified, only for reference subject to change.
