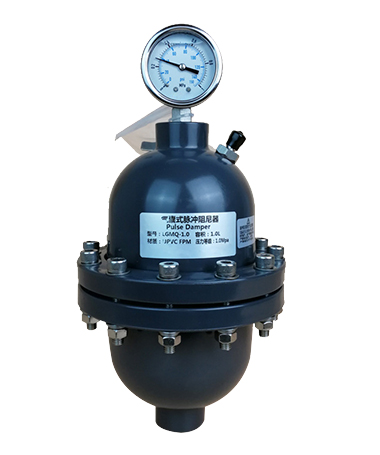

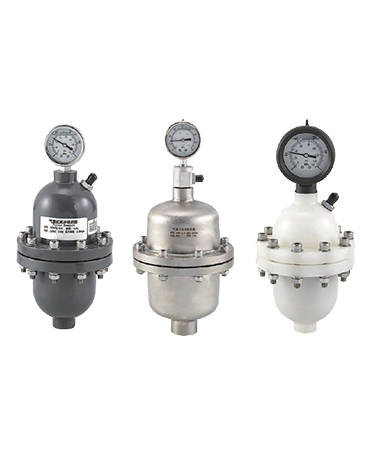

P07 Airbag pulsation damper

Shell material
UPVC、PP. PVDF、SUS304、SUS316L
Airbag material
FPM，EPDM, NBR

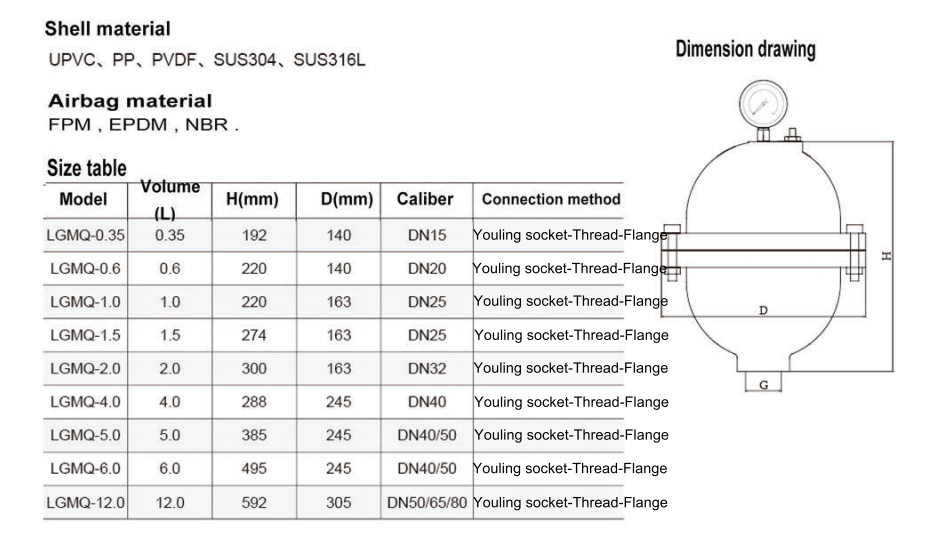

Volume selection of bladder damper
That is, the metering capacity (m) of each stroke of the metering pump (or diaphragm pump) is multiplied by 12 to
obtain the minimum volume of the damper required to reduce 90% of the pulse.
