3305 Digital pressure gauge 80mm

Contact Us DownLoad PDF

Details

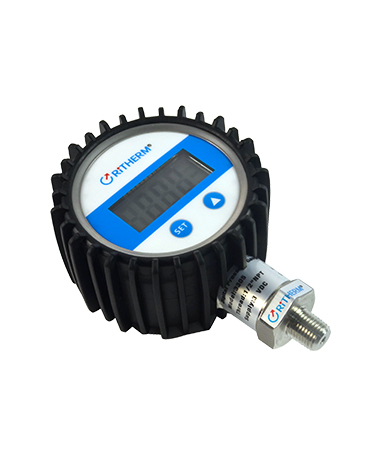

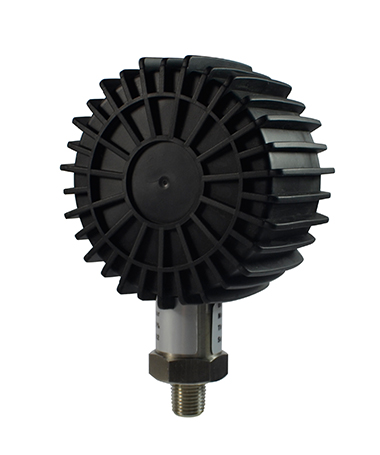

digital pressure gauge 80mm
Model:3305
APPLICATIONS:

3305 series digital pressure gauge is suitable for calibration of the precision pressure gauge, general pressure gauge, pressure transmitters or as substitution of dead weight tester. It can be also used on site.

Special Feature:

Lower power consumption

With micropower components with its unique software processing technology

With Li-ion dry battery powered, can last 1 year with 24 hours working per day.

5 pressure unit interchangeable

0.5% high precision accuracy

Specification:

Dial size: 80mm

Wetted parts: 316 stainless steel

Tempertaure compensation range: 0-50 deg C

Working environment temperature 0-50 deg C, humidity less 80%

Data losing protection function

RS232 communication port

Pressure range: -1 bar to 400bar

Over pressure: 200% of full scale

Process connection: Lower mount 1/4"BSP, 1/4"NPT, special thread on request

Net Weight: 500g
