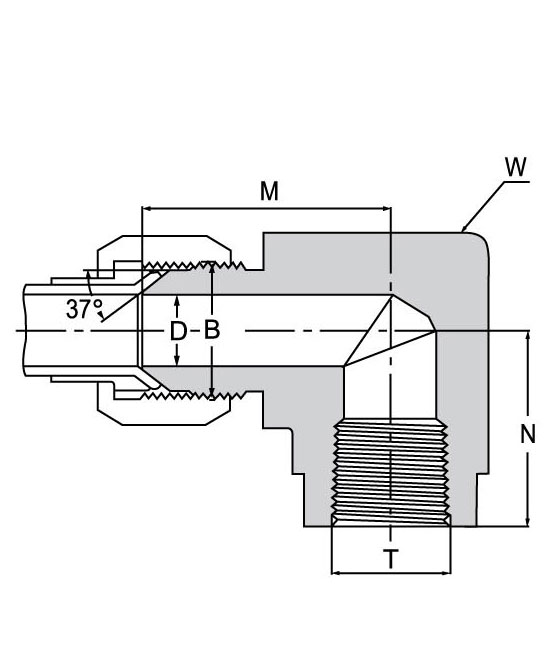

FEH TYPE FEMALE ELBOW

According to S.A.E 070203



tube outside inch

diameter mm

B

UNF

T

NPT/PT

D

W

inch

M

N

inch mm inch mm inch mm

FEH-1/8

-

5/16-24

1/8

0.062

1.6

5/8

1

25.4

0.66

16.8

FEH-3/16

-

3/8-24

1/8

0.125

3.2

5/8

1.03

26.2

0.66

13.8

FEH-1/4

6

7/16-20

1/8

0.172

4.4

5/8

1.08

27.4

0.66

16.8

FEH-1/4

6

7/16-20

1/4

0.172

4.4

13/16

1.22

30.9

0.88

22.4

FEH-5/16

8

1/2-20

1/8

0.234

6.0

5/8

1.08

27.4

0.66

16.8

FEH-5/16

8

1/2-20

1/4

0.234

6.0

13/16

1.22

30.9

0.88

22.4

FEH-3/8

10

9/16-18

1/8

0.297

7.5

5/8

1.06

26.9

0.66

16.8

FEH-3/8

10

9/16-18

1/4

0.297

7.5

13/16

1.23

31.2

0.88

22.4

FEH-3/8

10

9/16-18

3/8

0.297

7.5

15/16

1.31

33.2

1.02

25.9

FEH-1/2

12

3/4-16

1/4

0.391

9.9

13/16

1.25

31.6

0.88

22.4

FEH-1/2

12

3/4-16

3/8

0.391

9.9

15/16

1.42

36.1

1.02

25.9

FEH-1/2

12

3/4-16

1/2

0.391

9.9

1-1/8

1.42

36.1

1.23

31.2

FEH-5/8

16

7/8-14

1/2

0.484

12.3

1-1/8

1.64

41.5

1.23

31.2

FEH-3/4

18

1-1/16-12

1/2

0.609

15.5

1-3/8

1.66

42.1

1.23

31.2

FEH-3/4

18

1-1/16-12

3/4

0.609

15.5

1-3/8

1.89

48.0

1.36

34.5

FEH-7/8

20

1-3/16-12

3/4

0.719

18.3

1-3/8

1.86

47.2

1.42

36.1

FEH-1

25

1-5/16-12

1

0.844

21.5

15/8

2.17

55.1

1.62

41.1

FEH-1-1/4

32

1-5/8-12

1-1/4

1.078

27.5

2-1/8

2.33

59.2

1.70

43.2

FEH-1-1/2

38

1-7/8-12

1-1/2

1.312

33.0

2-3/8

2.89

73.4

2.08

52.8

FEH-2



2-1/2-12

2

1.781

45.0

2-7/8

3.30

83.8

2.39

60.7



All dimensions are in mullimeters unless otherwise specified, only for reference subject to change.
