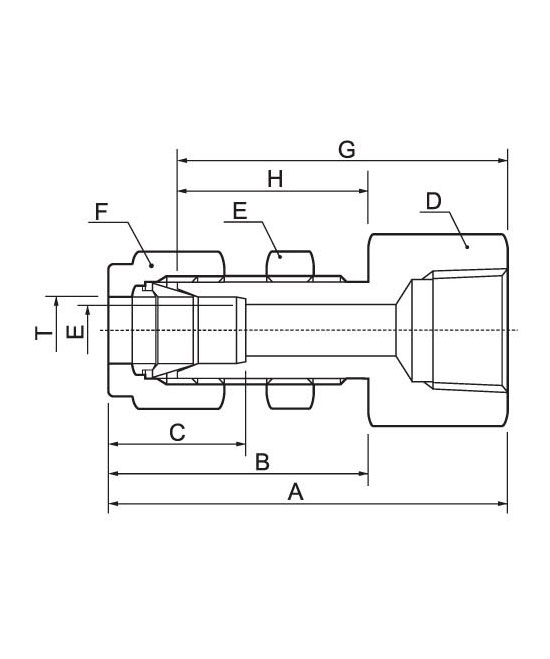

Tube fitting BFC-S

T

TUBE

O.D.

PT-NPT

FEMALE

PIPE

SIZE

CATALOG

NUMBER

A

B

C

D

E

F

G

H

I

PANEL

HOLE

DRILL

MAX

PANEL

THICK

6

1/8

BFC-6-1

46.90

35.00

15.3

15.8

4.8

14

39.6

26.2

15.8

11.5

10.2

6

1/4

BFC-6-2

51.80

33.60

15.3

19.0

4.8

14

44.4

26.2

16.0

11.5

10.2

8

1/4

BFC-8-2

53.85

35.55

16.2

19.0

6.3

16

46.7

28.6

17.4

13.1

11.2

12

1/2

BFC-12-4

66.50

41.90 22.8

27.0

9.5

22

56.4

31.8

24.0

19.5

12.7

1/8

1/8

BFC-01-1

44.70

31.24

12.70

14.28

2.28

11.11

12.70

38.10

24.63

8.33

12.70

1/4

1/8

BFC-02-1

46.99

33.52

15.24

15.87

4.82

14.28

15.87

39.62

26.16

11.50

10.16

1/4

1/4

BFC-02-2

51.81

33.52

15.24

19.05

4.82

14.28

15.87

44.45

26.16

11.50

10.16

3/8

1/4

BFC-03-2

55.11

36.83

16.76

19.05

7.11

17.46

19.05

47.75

29.46

14.68

11.17

3/8

3/8

BFC-03-3

56.77

36.83

16.76

22.22

7.11

17.46

19.05

49.41

29.46

14.68

11.17

1/2

3/8

BFC-04-3

61.72

41.91

22.86

23.81

10.41

22.22

23.81

51.56

31.75

19.44

12.70

1/2

1/2

BFC-04-4

66.54

41.91

22.86

26.98

10.41

22.22

23.81

56.38

31.75

19.44

12.70

3/4

3/4

BFC-06-6

73.51

47.21

24.38

31.75

15.74

28.57

30.16

63.60

38.30

16.76

1

1

BFC-08-8

93.23

57.40

31.24

41.27

22.35

38.10

41.27

81.04

45.21

33.73

19.05
