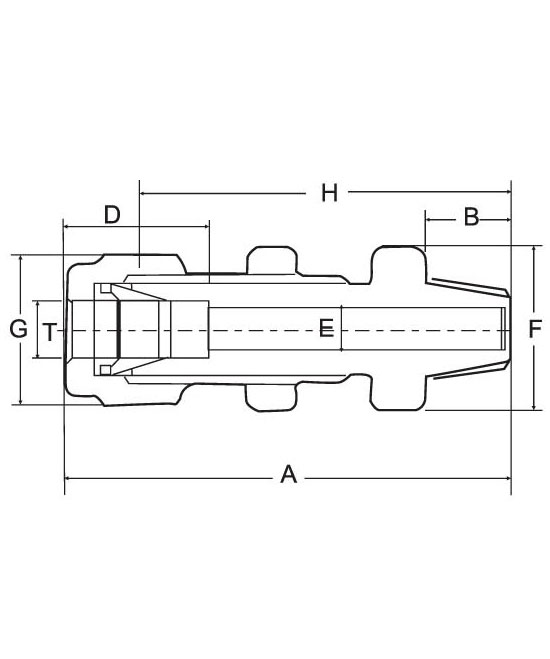

BULKHEAD MALE CONNECTOR (METRIC)
|
TUBE O.D. |
PIPESIZE PT/NPT |
CATALOG NUMBER |
A |
B |
D |
E |
F |
G |
H |
PANEL HOLE SIZE |
MAX PANEL THICK. |
|
6 |
1/8 |
BMC-6-1 |
50.9 |
10 |
15.3 |
5 |
17 |
14 |
42.4 |
11.5 |
10.2 |
|
6 |
1/4 |
BMC-6-2 |
53.6 |
13 |
15.3 |
5 |
17 |
14 |
46.2 |
11.5 |
10.2 |
|
6 |
3/8 |
BMC-6-3 |
54.9 |
14 |
15.3 |
5 |
17 |
14 |
40.9 |
11.5 |
10.2 |
|
6 |
1/2 |
BMC-6-4 |
57.9 |
17 |
15.3 |
5 |
22 |
14 |
43.9 |
11.5 |
10.2 |
|
8 |
1/8 |
BMC-8-1 |
53.4 |
10 |
16.2 |
6 |
19 |
17 |
38.4 |
13.1 |
11.2 |
|
8 |
1/4 |
BMC-8-2 |
56.4 |
13 |
16.2 |
6 |
19 |
17 |
41.4 |
13.1 |
11.2 |
|
8 |
3/8 |
BMC-8-3 |
57.4 |
14 |
16.2 |
6 |
19 |
17 |
42.4 |
13.1 |
11.2 |
|
8 |
1/2 |
BMC-8-4 |
60.4 |
17 |
16.2 |
6 |
22 |
17 |
45.4 |
13.1 |
11.2 |
|
10 |
1/4 |
BMC-10-2 |
56.0 |
13 |
17.2 |
8 |
19 |
19 |
42.0 |
16.3 |
11.2 |
|
10 |
3/8 |
BMC-10-3 |
56.0 |
14 |
17.2 |
8 |
19 |
19 |
43.0 |
16.3 |
11.2 |
|
10 |
1/2 |
BMC-10-4 |
59.0 |
17 |
17.2 |
8 |
24 |
19 |
47.0 |
16.3 |
11.2 |
|
12 |
1/4 |
BMC-12-2 |
62.2 |
13 |
22.8 |
10 |
24 |
22 |
42.4 |
19.5 |
12.7 |
|
12 |
3/8 |
BMC-12-3 |
63.2 |
14 |
22.8 |
10 |
24 |
22 |
43.4 |
19.5 |
12.7 |
|
12 |
1/2 |
BMC-12-4 |
68.8 |
17 |
22.8 |
10 |
24 |
22 |
58.7 |
19.5 |
12.7 |
(FRACTIONAL)
|
1/4 |
1/8 |
BMC-02-1 |
50.9 |
10 |
15.3 |
5 |
17 |
14 |
42.4 |
11.5 |
10.2 |
|
1/4 |
1/4 |
BMC-02-2 |
49.5 |
13 |
15.3 |
5 |
17 |
14 |
46.7 |
11.5 |
10.2 |
|
1/4 |
3/8 |
BMC-02-3 |
54.9 |
14 |
15.3 |
5 |
17 |
14 |
40.9 |
11.5 |
10.2 |
|
1/4 |
1/2 |
BMC-02-4 |
57.9 |
17 |
15.3 |
5 |
22 |
14 |
43.9 |
11.5 |
10.2 |
|
3/8 |
1/4 |
BMC-03-2 |
57.4 |
13 |
16.8 |
8 |
19 |
17 |
42.0 |
16.3 |
11.2 |
|
3/8 |
3/8 |
BMC-03-3 |
57.4 |
14 |
16.8 |
8 |
19 |
17 |
43.0 |
16.3 |
11.2 |
|
3/8 |
1/2 |
BMC-03-4 |
63.8 |
17 |
16.8 |
8 |
22 |
17 |
47.0 |
16.3 |
11.2 |
|
1/2 |
1/4 |
BMC-04-2 |
62.2 |
13 |
22.8 |
10 |
24 |
22 |
42.7 |
19.5 |
12.7 |
|
1/2 |
3/8 |
BMC-04-3 |
63.2 |
14 |
22.8 |
10 |
24 |
22 |
43.7 |
19.5 |
12.7 |
|
1/2 |
1/2 |
BMC-04-4 |
68.8 |
17 |
22.8 |
10 |
24 |
22 |
58.8 |
19.5 |
12.7 |
ALL DIMENSIONS ARE IN MILLIMETERS UNLESS OTHERWISE SPECIFIED. ONLY FOR REFERENCE SUBJECT TO CHANGE.
