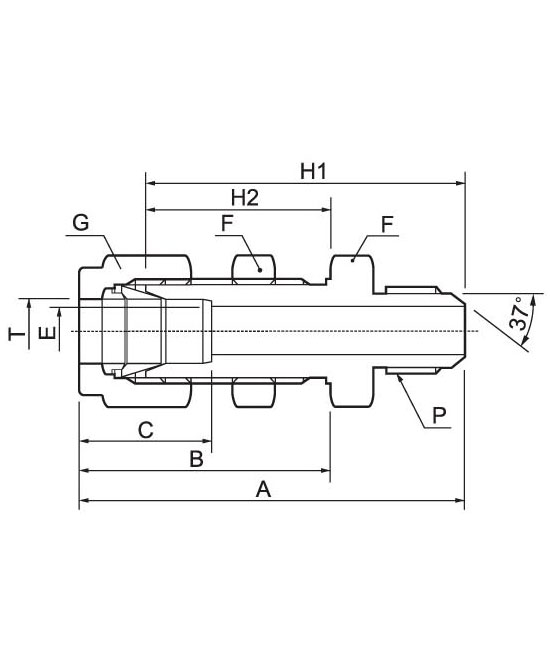

Tube fitting BMCH-S

TUBE

O.D.

AN TUBE

FLARE

SIZE

CATALOG

NUMBER

STRAIGHT

THREAD

P(U)

A

B

C

E

F

G

H2

PANEL

HOLE

DRILL

MAX

PANEL

THICK

1/8

1/8

BMCH-01-1U

5/16-24

47.45

31.23

13.71

1.77

12.70

11.11

24.63

8.33

12.70

1/4

1/4

BMCH-02-2U

7/16-20

53.84

33.52

15.24

4.31

15.87

14.28

26.16

11.50

10.16

3/8

3/8

BMCH-03-3U

9/16-18

57.15

36.83

16.76

7.11

19.05

17.46

14.68

11.17

1/2

1/2

BMCH-04-4U

3/4-16

65.78

41.91

22.86

9.90

23.81

22.22

31.75

19.44

12.70

3/4

3/4

BMCH-06-6U

1-1/16-12

78.99

47.49

24.38

15.49

28.58

37.33

25.79

16.76

1

1

BMCH-08-8U

1-5/16-12

92.45

57.40

31.24

21.33

38.10

33.73

19.05
