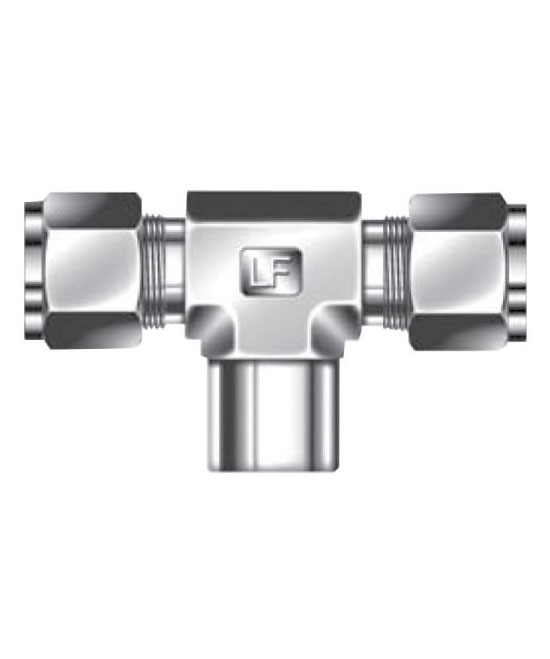

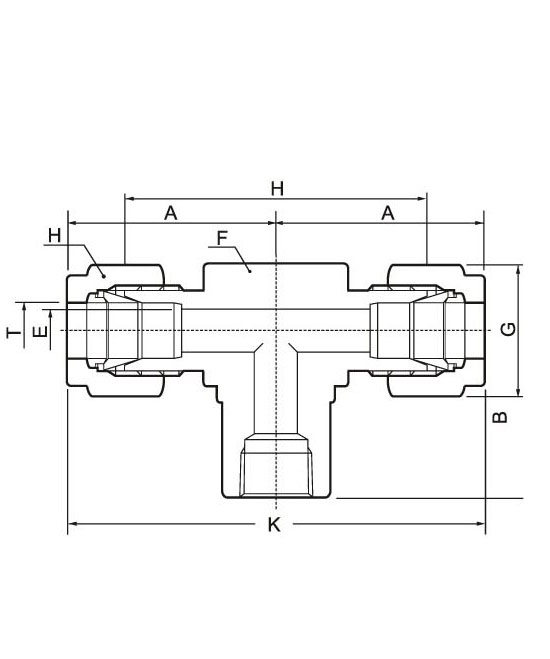

Tube fitting FBT-S

T

TUBE

O.D.

PT-NPT

MALE

PIPE

SIZE

CATALOG

NUMBER

A

B

D

E

F

G

H

K

6

1/8

FBT-6-1

27.0

19.1

15.3

5

14

14

39.2

54.0

6

1/4

FBT-6-2

29.8

22.4

15.3

5

17

14

44.8

59.6

6

3/8

FBT-6-3

34.6

22.4

15.3

5

22

14

54.4

69.2

6

1/2

FBT-6-4

37.7

28.4

15.3

5

27

14

60.6

74.6

8

1/8

FBT-8-1

29.3

20.0

16.2

6

14

17

43.6

58.6

8

1/4

FBT-8-2

30.6

22.4

16.2

6

17

17

46.2

61.2

8

3/8

FBT-8-3

34.0

27.7

16.2

6

22

17

53.0

68.0

8

1/2

FBT-8-4

36.8

31.7

16.2

6

27

17

58.6

73.6

10

1/8

FBT-10-1

31.5

19.0

17.2

8

17

19

47.8

63.0

10

1/4

FBT-10-2

33.5

22.4

17.2

8

17

19

51.8

67.0

10

3/8

FBT-10-3

37.5

27.7

17.2

8

22

19

59.8

75.0

10

1/2

FBT-10-4

40.3

31.7

17.2

8

27

19

65.4

80.6

12

1/8

FBT-12-1

36.0

22.4

22.8

10

22

22

51.8

72.0

12

1/4

FBT-12-2

36.0

22.4

22.8

10

22

22

51.8

72.0

12

3/8

FBT-12-3

36.0

22.4

22.8

10

22

22

51.8

72.0

12

1/2

FBT-12-4

38.8

28.4

22.8

10

27

22

57.4

77.6

12

3/4

FBT-12-6

41.8

32.4

22.8

10

32

22

63.4

83.6

14

3/8

FBT-14-3

39.8

25.4

24.4

10

27

27

59.4

79.6

14

1/2

FBT-14-4

39.8

28.4

24.4

10

27

27

59.4

79.6

14

3/4

FBT-14-6

42.8

32.4

24.4

10

32

27

65.4

85.6

15

3/8

FBT-15-3

39.8

25.4

24.4

11

27

27

59.4

79.6

15

1/2

FBT-15-4

39.8

28.4

24.4

11

27

27

59.4

79.6

15

3/4

FBT-15-6

42.8

32.4

24.4

11

32

27

65.4

85.6

16

3/8

FBT-16-3

39.8

25.4

24.4

12

27

27

59.4

79.6

16

1/2

FBT-16-4

39.8

28.4

24.4

12

27

27

59.4

79.6

16

3/4

FBT-16-6

42.8

32.4

24.4

12

32

27

65.4

85.6

18

3/8

FBT-18-3

40.5

25.4

24.4

14

27

30

60.8

81.0

18

1/2

FBT-18-4

40.5

28.4

24.4

14

27

30

60.8

81.0

18

3/4

FBT-18-6

43.5

32.4

24.4

14

32

30

66.8

87.0

20

1/2

FBT-20-4

43.5

31.4

26.0

16

32

32

66.8

87.0

20

3/4

FBT-20-6

46.5

35.4

26.0

16

32

32

72.8

93.0

22

1/2

FBT-22-4

43.5

31.4

26.0

18

32

32

66.8

87.0

22

3/4

FBT-22-6

46.5

35.4

26.0

18

32

32

72.8

93.0

25

1/2

FBT-25-4

47.5

33.4

31.3

21

34

38

71.0

95.0

25

3/4

FBT-25-6

50.5

37.4

31.3

21

34

38

76.4

101.0

1/4

1/8

FBT-02-1

27.0

19.1

15.2

5

14

14

39.2

54.0

1/4

1/4

FBT-02-2

29.8

22.4

15.2

5

17

14

44.8

59.6

1/4

3/8

FBT-02-3

34.6

22.4

15.2

5

22

14

54.4

69.2

1/4

1/2

FBT-02-4

37.7

28.4

15.2

5

27

14

60.6

74.6

3/8

1/8

FBT-03-1

30.5

19.8

16.8

7

17

17

46.2

61.0

3/8

1/4

FBT-03-2

31.2

22.4

16.8

7

17

17

48.0

62.4

3/8

3/8

FBT-03-3

33.3

22.4

16.8

7

22

17

52.0

66.6

3/8

1/2

FBT-03-4

36.1

28.4

16.8

7

27

17

57.4

72.2

1/2

1/8

FBT-04-1

36.0

22.4

22.8

10

22

22

51.8

72.0

1/2

1/4

FBT-04-2

36.0

22.4

22.8

10

22

22

51.8

72.0

1/2

3/8

FBT-04-3

36.0

22.4

22.8

10

22

22

51.8

72.0

1/2

1/2

FBT-04-4

38.8

28.4

22.8

10

27

22

57.4

77.6

1/2

3/4

FBT-04-6

41.8

32.4

22.8

10

32

22

63.4

83.6

3/4

1/2

FBT-06-4

39.9

28.4

24.4

15

27

30

59.4

79.8

3/4

3/4

FBT-06-6

44.7

31.7

24.4

15

32

30

69.0

89.4

1

3/4

FBT-08-6

49.0

31.7

31.2

21

34

38

73.6

98.0
