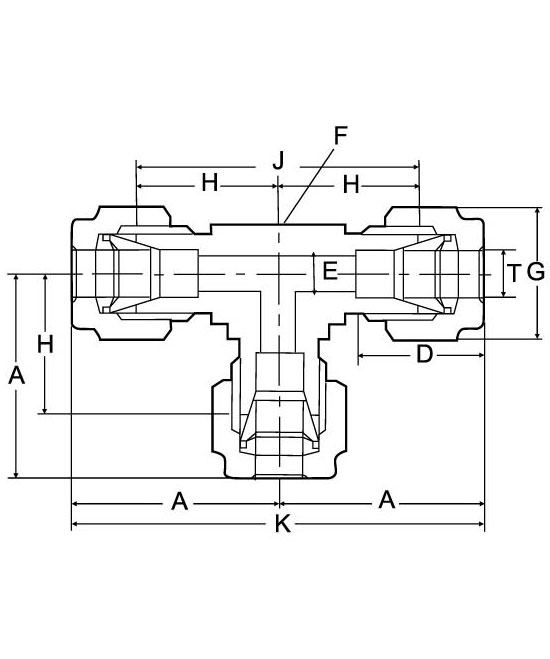

UNION TEE
(METRIC)
|
TUBE O.D. |
CATALOG NUMBER |
A |
D |
E |
F |
G |
H |
J |
K |
|
3 |
UT-3-0 |
23.6 |
12.9 |
2 |
12 |
10 |
15.7 |
31.5 |
47.2 |
|
4 |
UT-4-0 |
25.4 |
13.7 |
3 |
12 |
12 |
18.8 |
37.6 |
50.8 |
|
6 |
UT-6-0 |
27.0 |
15.3 |
5 |
12 |
14 |
19.6 |
39.4 |
53.9 |
|
8 |
UT-8-0 |
29.9 |
16.2 |
6 |
14 |
17 |
22.4 |
44.7 |
59.7 |
|
10 |
UT-10-0 |
31.5 |
17.2 |
8 |
17 |
19 |
23.9 |
47.8 |
63.0 |
|
12 |
UT-12-0 |
36.0 |
22.8 |
10 |
22 |
22 |
25.9 |
51.8 |
72.0 |
|
14 |
UT-14-0 |
38.8 |
24.4 |
10 |
24 |
27 |
28.7 |
57.4 |
77.6 |
|
15 |
UT-15-0 |
38.8 |
24.4 |
11 |
24 |
27 |
28.7 |
57.4 |
77.6 |
|
16 |
UT-16-0 |
38.8 |
24.4 |
12 |
24 |
27 |
28.7 |
57.4 |
77.6 |
|
18 |
UT-18-0 |
39.8 |
24.4 |
14 |
27 |
31 |
29.7 |
59.4 |
79.5 |
|
20 |
UT-20-0 |
44.6 |
26.0 |
16 |
30 |
32 |
34.5 |
69.1 |
89.3 |
|
22 |
UT-22-0 |
44.6 |
26.0 |
18 |
30 |
32 |
34.5 |
69.1 |
89.3 |
|
25 |
UT-25-0 |
49.1 |
31.3 |
21 |
35 |
38 |
36.8 |
73.7 |
98.3 |
(FRACTIONAL)
|
1/16 |
UT-005-0 |
17.8 |
8.6 |
1 |
12 |
10 |
14.0 |
28.0 |
35.6 |
|
1/8 |
UT-01-0 |
22.4 |
12.7 |
2 |
12 |
10 |
15.8 |
31.4 |
44.8 |
|
3/16 |
UT-015-0 |
25.4 |
13.7 |
3 |
12 |
12 |
19.6 |
39.1 |
50.8 |
|
1/4 |
UT-02-0 |
27.0 |
15.2 |
5 |
12 |
14 |
22.4 |
44.8 |
54.0 |
|
5/16 |
UT-025-0 |
29.9 |
16.2 |
6 |
14 |
17 |
22.4 |
44.7 |
59.7 |
|
3/8 |
UT-03-0 |
30.5 |
16.8 |
8 |
17 |
19 |
23.1 |
46.2 |
61.0 |
|
1/2 |
UT-04-0 |
36.0 |
22.8 |
10 |
22 |
22 |
26.0 |
52.0 |
72.0 |
|
5/8 |
UT-05-0 |
38.9 |
24.4 |
12 |
24 |
27 |
28.7 |
57.4 |
77.8 |
|
3/4 |
UT-06-0 |
40.0 |
26.0 |
15 |
27 |
30 |
29.7 |
59.4 |
80.0 |
|
7/8 |
UT-07-0 |
44.6 |
26 |
18 |
30 |
32 |
34.5 |
69.1 |
89.3 |
|
1 |
UT-08-0 |
49.0 |
31.2 |
21 |
35 |
38 |
36.8 |
73.6 |
98.0 |
All dimensions are in mullimeters unless otherwise specified, only for reference subject to change.
