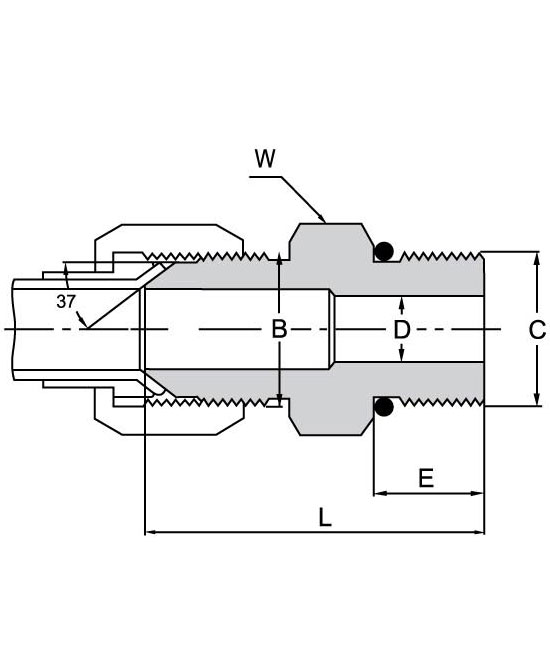

MCHOB TYPE MALE CONNECTOR
Conform to SAE. Straight thread bushing used in connecting from the end of Flare to straight thread bushinq. According to S.A.E 070120
|
tube outside |
diameter | B |
C |
D |
W |
E |
L |
O-Ring STD. |
|||
|
inch |
mm | UNF |
UNF |
inch |
mm |
inch |
inch |
mm |
inch |
mm |
Dash No. |
|
MCHOB-1/8 |
- |
5/16-24 |
5/16-24 |
0.062 |
1.6 |
7/16 |
0.3 |
7.5 |
1.06 |
26.9 |
-902 |
|
MCHOB-3/16 |
- |
3/8-24 |
3/8-24 |
0.125 |
3.2 |
1/2 |
0.3 |
7.5 |
1.10 |
27.9 |
-903 |
|
MCHOB-1/4 |
6 |
7/16-20 |
7/16-20 |
0.172 |
4.4 |
9/16 |
0.36 |
9.1 |
1.23 |
31.2 |
-904 |
|
MCHOB-1/4 |
6 |
7/16-20 |
1/2-20 |
0.172 |
4.4 |
5/8 |
0.36 |
9.1 |
1.23 |
31.2 |
-905 |
|
MCHOB-1/4 |
6 |
7/16-20 |
9/16-18 |
0.172 |
4.4 |
11/16 |
0.39 |
9.9 |
1.30 |
33.0 |
-906 |
|
MCHOB-1/4 |
6 |
7/16-20 |
3/4-16 |
0.172 |
4.4 |
7/8 |
0.44 |
11.1 |
1.37 |
34.8 |
-908 |
|
MCHOB-5/16 |
8 |
1/2-20 |
1/2-20 |
0.234 |
6.0 |
5/8 |
0.36 |
9.1 |
1.23 |
31.2 |
-905 |
|
MCHOB-3/8 |
10 |
9/16-18 |
9/16-18 |
0.280 |
7.5 |
11/16 |
0.39 |
9.9 |
1.30 |
33.0 |
-906 |
|
MCHOB-3/8 |
10 |
9/16-18 |
3/4-16 |
0.297 |
7.5 |
7/8 |
0.44 |
11.1 |
1.38 |
35.1 |
-908 |
|
MCHOB-3/8 |
10 |
9/16-18 |
7/8-14 |
0.297 |
7.5 |
1 |
0.50 |
12.7 |
1.50 |
38.1 |
-910 |
|
MCHOB-1/2 |
12 |
3/4-16 |
3/4-16 |
0.391 |
9.9 |
7/8 |
0.44 |
11.1 |
1.48 |
37.6 |
-908 |
|
MCHOB-1/2 |
12 |
3/4-16 |
9/16-18 |
0.280 |
9.9 |
13/16 |
0.39 |
9.9 |
1.44 |
36.6 |
-906 |
|
MCHOB-1/2 |
12 |
3/4-16 |
7/8-14 |
0.391 |
9.9 |
1 |
0.50 |
12.7 |
1.60 |
40.6 |
-910 |
|
MCHOB-1/2 |
12 |
3/4-16 |
1-1/16-12 |
0.391 |
9.9 |
1-1/4 |
0.59 |
15.1 |
1.76 |
44.7 |
-912 |
|
MCHOB-5/8 |
16 |
7/8-14 |
7/8-14 |
0.484 |
12.3 |
1 |
0.50 |
12.7 |
1.70 |
43.2 |
-910 |
|
MCHOB-5/8 |
16 |
7/8-14 |
3/4-16 |
0.484 |
12.3 |
15/16 |
0.44 |
11.1 |
1.60 |
40.6 |
-908 |
|
MCHOB-5/8 |
16 |
7/8-14 |
1-1/16-12 |
0.484 |
12.3 |
1-1/4 |
0.59 |
15.1 |
1.86 |
47.2 |
-912 |
|
MCHOB-3/4 |
18 |
1-1/16-12 |
1-1/16-12 |
0.609 |
15.5 |
1-1/4 |
0.59 |
15.1 |
1.97 |
50.0 |
-912 |
|
MCHOB-3/4 |
18 |
1-1/16-12 |
3/4-16 |
0.420 |
10.7 |
1-1/8 |
0.44 |
11.1 |
1.78 |
45.2 |
-908 |
|
MCHOB-3/4 |
18 |
1-1/16-12 |
7/8-14 |
0.50 |
12.7 |
1-1/8 |
0.50 |
12.7 |
1.83 |
46.4 |
-910 |
|
MCHOB-3/4 |
18 |
1-1/16-12 |
1-5/16-12 |
0.609 |
15.5 |
1-1/2 |
0.59 |
15.1 |
2.00 |
50.8 |
-916 |
|
MCHOB-7/8 |
20 |
1-3/16-12 |
1-3/16-12 |
0.719 |
18.3 |
1-3/8 |
0.59 |
15.1 |
1.99 |
50.5 |
-914 |
|
MCHOB-7/8 |
20 |
1-3/16-12 |
1-5/16-12 |
0.719 |
18.3 |
1-1/2 |
0.59 |
15.1 |
2.02 |
51.3 |
-916 |
|
MCHOB-1 |
25 |
1-5/16-12 |
1-5/16-12 |
0.844 |
21.5 |
1-1/2 |
0.59 |
15.1 |
2.04 |
51.8 |
-916 |
|
MCHOB-1 |
25 |
1-5/16-12 |
1-1/16-12 |
0.650 |
16.7 |
1-3/8 |
0.59 |
15.1 |
2.01 |
51.1 |
-912 |
|
MCHOB-1 |
25 |
1-5/16-12 |
1-3/16-12 |
0.719 |
18.3 |
1-3/8 |
0.59 |
15.1 |
2.04 |
51.8 |
-914 |
All dimensions are in mullimeters unless otherwise specified, only for reference subject to change.
