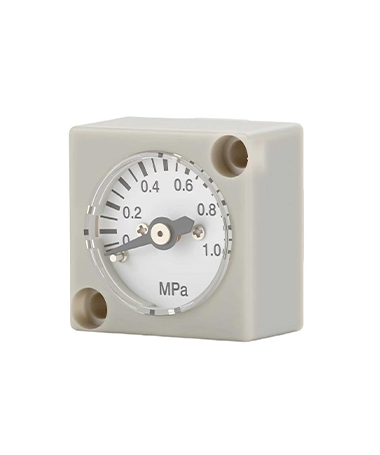

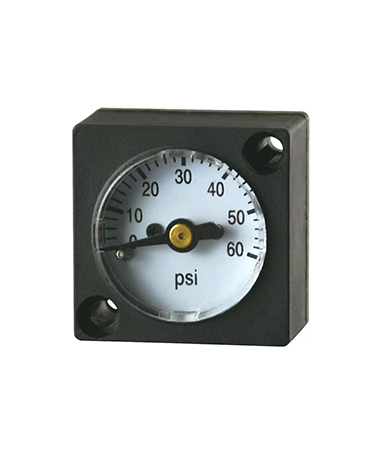

1181 Mini square pressure gauge

Ritherm Mini square pressure gauge Model 1181 are made according to both EN 837-1 and ANSI B40.1 standard. Ritherm Mini square pressure gauge is a compact size 27mm mini square pressure gauge, which is built for very compact size application, which is ideal for pneumatic system, especially air regulator. We insist to make long lasting pressure gauges to match with your quality pneumatic products. We can make OEM design to match your products.

Ritherm Mini square pressure gauge

Applications

1181 series Mini square pressure gauge typically for pneumatic system, especially air regulator. This pressure gauge is designed special for medical gas regulator on cylinder.

Ritherm Mini square pressure gauge Special Features

Model 1181 are made of plastic case and brass spiral tube, copper alloy, beryllium copper, Acrylic window. The nominal dial size is 27X27mm square.

The accuracy is 5% full scale.

Pressure range from 0-10bar

The ambient temperature is suitable for -40+70 deg C.
