Tube fitting MCPH-S

Contact Us DownLoad PDF

Details

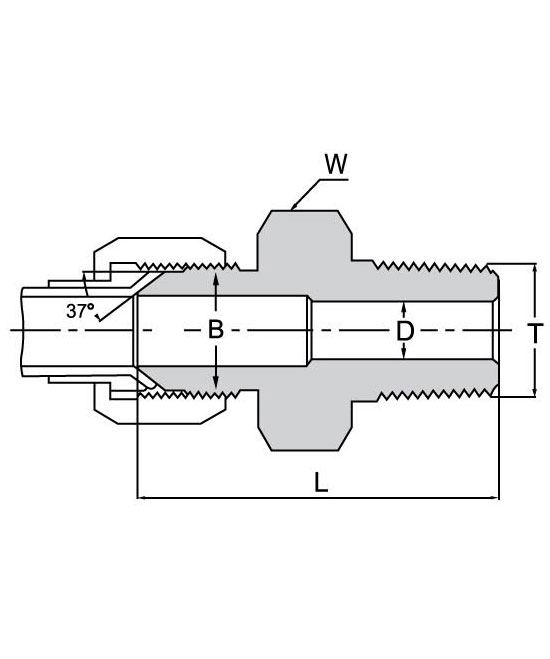

MCPH TYPE MALE CONNECTOR

According to S.A.E 070102



tube outside

diamete

B

T

D

W

L

inch

mm

UNF

NPT/PT

inch

mm

inch

inch

mm

MCPH-1/8

-

5/16-24

1/8

0.062

1.6

7/16

0.11

28.2

MCPH-3/16

-

3/8-24

1/8

0.125

3.2

7/16

1.14

29.0

MCPH-1/4

6

7/16-20

1/8

0.172

4.4

1/2

1.22

31.0

MCPH-1/4

6

7/16-20

1/4

0.172

4.4

9/16

1.42

36.0

MCPH-1/4

8

7/16-20

1/2

0.172

4.4

7/8

1.68

42.7

MCPH-5/16

8

1/2-20

1/8

0.190

4.8

9/16

1.22

31.0

MCPH-5/16

8

1/2-20

1/4

0.234

6.0

9/16

1.42

36.1

MCPH-3/8

10

9/16-18

1/8

0.190

4.8

5/8

1.25

31.8

MCPH-3/8

10

9/16-18

1/4

0.280

7.1

5/8

1.43

36.3

MCPH-3/8

10

9/16-18

3/8

0.297

7.5

3/4

1.43

36.3

MCPH-3/8

10

9/16-18

1/2

0.297

7.5

7/8

1.69

42.5

MCPH-1/2

12

3/4-16

1/4

0.280

7.1

13/16

1.53

38.9

MCPH-1/2

12

3/4-16

3/8

0.391

9.5

13/16

1.53

33.9

MCPH-1/2

12

3/4-16

1/2

0.391

9.9

7/8

1.79

45.4

MCPH-1/2

12

3/4-16

3/4

0.391

9.9

1-1/8

1.85

47.0

MCPH-5/8

16

7/8-14

3/8

0.380

9.5

15/16

1.70

43.1

MCPH-5/8

16

7/8-14

1/2

0.484

11.9

15/16

1.89

48.0

MCPH-5/8

16

7/8-14

3/4

0.470

12.3

1-1/8

1.95

49.5

MCPH-3/4

18

1-1/16-12

3/4

0.609

15.5

1-1/8

2.06

52.3

MCPH-3/4

28

1-1/16-12

1

0.609

15.5

1-3/8

2.25

57.1

MCPH-7/8

20

1-3/16-12

3/4

0.719

18.3

1-1/4

2.09

53.1

MCPH-1

25

1-5/16-12

3/4

0.719

21.5

1-3/8

2.11

53.5

MCPH-1

25

1-5/16-12

1

0.844

21.5

1-3/8

2.30

58.4

MCPH-1-1/4

32

1-5/8-12

1

1.844

21.5

1-11/16

2.42

61.5

MCPH-1-1/4

32

1-5/8-12

1-1/4

1.078

27.5

1-11/16

2.45

62.2

MCPH-1-1/2

38

1-7/8-12

1-1/4

1.312

33.0

2

2.68

68.1

MCPH-1-1/2

38

1-7/8-12

1-1/2

1.312

33.0

2

2.68

68.1

MCPH-2



2-1/2-12

2

1.781

45.0

2-5/8

3.11

79.0



* smithing material
