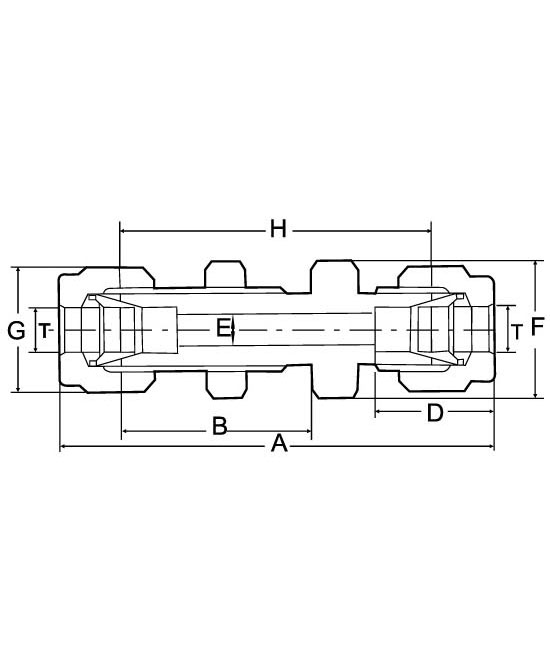

BULKHEAD UNION (METRIC)
|
TUBE O.D. |
CATALOG NUMBER |
A |
B |
D |
E |
F |
G |
H |
PANEL HOLE SIZE |
MAX PANEL THICK. |
|
6 |
BU-6-0 |
57.7 |
26.2 |
15.3 |
5 |
17 |
14 |
42.9 |
11.5 |
10.2 |
|
8 |
BU-8-0 |
61.0 |
28.6 |
16.2 |
6 |
19 |
17 |
46.0 |
13.1 |
11.2 |
|
10 |
BU-10-0 |
63.7 |
29.4 |
17.2 |
8 |
19 |
19 |
48.5 |
16.3 |
11.2 |
|
12 |
BU-12-0 |
71.0 |
31.8 |
22.8 |
10 |
24 |
22 |
50.8 |
19.5 |
12.7 |
|
14 |
BU-14-0 |
72.5 |
32.5 |
24.4 |
10 |
27 |
27 |
52.3 |
22.5 |
12.7 |
|
15 |
BU-15-0 |
72.5 |
32.5 |
24.4 |
11 |
27 |
27 |
52.3 |
22.8 |
12.7 |
|
16 |
BU-16-0 |
72.5 |
32.5 |
24.4 |
13 |
27 |
27 |
52.3 |
22.8 |
12.7 |
|
18 |
BU-18-0 |
78.9 |
37.3 |
24.4 |
14 |
30 |
30 |
58.7 |
26.0 |
16.8 |
|
20 |
BU-20-0 |
84.5 |
42.9 |
26.0 |
16 |
35 |
32 |
64.3 |
29.0 |
23.9 |
|
22 |
BU-22-0 |
84.5 |
42.9 |
26.0 |
18 |
35 |
32 |
64.3 |
29.0 |
23.9 |
|
25 |
BU-25-0 |
99.5 |
50.0 |
31.3 |
21 |
40 |
38 |
75.5 |
33.2 |
26.0 |
(FRACTIONAL)
|
1/8 |
BU-01-0 |
51.3 |
24.6 |
12.7 |
2.3 |
14 |
12 |
38.1 |
11.5 |
10.2 |
|
3/16 |
BU-015-0 |
53.6 |
25.4 |
13.7 |
3 |
14 |
14 |
40.4 |
11.5 |
10.2 |
|
1/4 |
BU-02-0 |
57.7 |
26.0 |
15.2 |
5 |
17 |
14 |
42.9 |
11.5 |
10.2 |
|
5/16 |
BU-025-0 |
60.7 |
28.4 |
16.3 |
6.4 |
17 |
16 |
46.0 |
13.1 |
11.2 |
|
3/8 |
BU-03-0 |
62.2 |
29.0 |
16.8 |
7 |
19 |
17 |
46.0 |
16.3 |
11.2 |
|
1/2 |
BU-04-0 |
71.1 |
31.0 |
22.8 |
10 |
24 |
22 |
50.8 |
19.5 |
12.7 |
|
5/8 |
BU-05-0 |
72.6 |
32.5 |
24.4 |
12 |
24 |
27 |
52.3 |
26.0 |
16.8 |
|
3/4 |
BU-06-0 |
79.0 |
38.0 |
24.4 |
15 |
30 |
30 |
58.7 |
26.0 |
16.8 |
|
7/8 |
BU-07-0 |
84.6 |
42.9 |
25.9 |
18 |
27 |
32 |
64.3 |
29.0 |
23.9 |
|
1 |
BU-08-0 |
95.8 |
50.0 |
31.2 |
21 |
40 |
38 |
71.4 |
33.2 |
26.0 |
All dimensions are in multimeters unless otherwise specified, only for reference subject to change.
