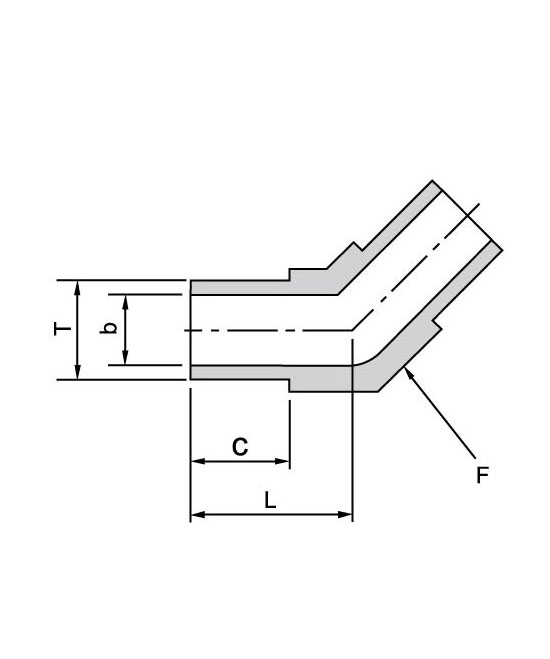

Tube fitting HME45-S

parts number

L

d

c

F

inch

T

tube outside diameter

inch/mm

thread mm

H-ME-1/8-W-45DEG

10.33

0.41

1.86

0.07

6.35

0.25

5/16

1/8"

-

0.028

H-ME-1/4-W-45DEG

10.33

0.41

4.56

0.18

6.35

0.25

5/16

1/4"

-

0.035

H-ME-3/8-W-45DEG

11.93

0.47

7.73

0.30

6.35

0.25

7/16

3/8"

-

0.035

H-ME-1/2-W-45DEG

13.53

0.53

10.2

0.40

6.35

0.25

9/16

1/2"

-

0.049

H-ME-1/2-W-45DEG WW.T=0.065

13.53

0.53

9.46

0.37

6.35

0.25

9/16

1/2"

0.065

H-ME-6MM-W45DEG

10.33

0.41

4.00

0.16

6.35

0.25

5/16

6MM

1.00

-

H-ME-8MM-W45DEG

11.93

0.47

6.00

0.24

6.35

0.25

7/16

8MM

1.00

-

H-ME-10MM-W45DEG

11.93

0.47

8.00

0.31

6.35

0.25

7/16

10MM

1.00

-

H-ME-12MM-W-45DEG

13.53

0.53

10.00

0.39

6.35

0.25

9/16

12MM

1.00

-
