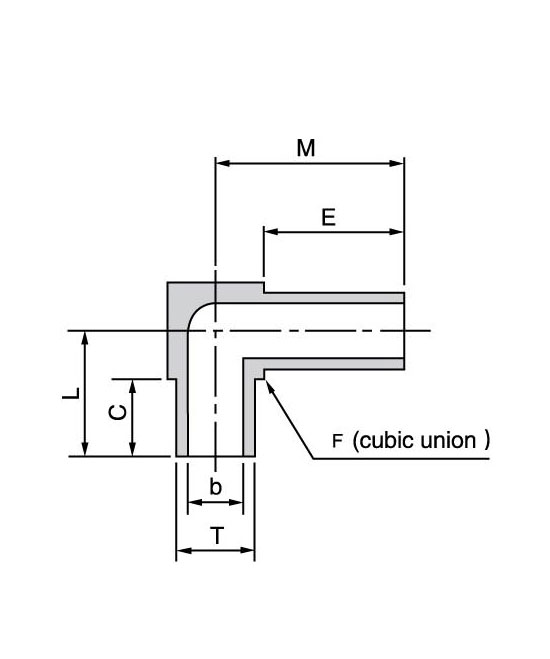

Tube fitting HMEX-S

parts number

L

M

d

C

E

F

T

tube outside diameter

thread

width

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

inch

inch/mm

inch

mm

H-MEX-1/4-0.41X0.66

10.33

0.41

16.66

0.66

4.56

0.18

6.35

0.25

12.70

0.50

5/16

1/4"

0.035

-

H-MWX-1/4-0.41X0.61

10.33

0.41

15.49

0.61

4.56

0.18

6.35

0.25

11.43

0.45

5/16

1/4"

0.035

-
