Tube fitting HMTR-S

Contact Us DownLoad PDF

Details

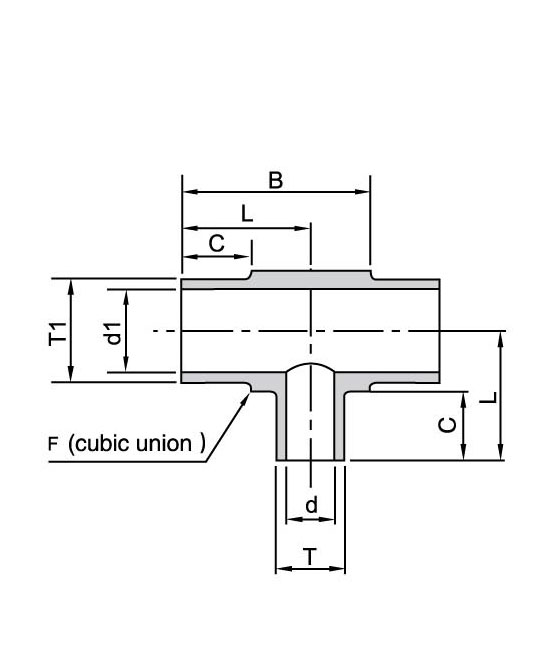

HMTR MINI TEE REDUCER



parts number

L

B

d

d1

C

F

T1

tube outside diameter

thread width

(T1)

T

lube outside diamet

threadwidth

(T1)

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

inch

inch/ mm

inch

mm

inch mm

inch

mm

H-MTR-1/2X1/4

13.53

0.53

27.06

1.07

4.57

0.18

10.20

0.40

6.35

0.25

9/16

1/2

0.049

-

1/4

0.039

-

H-MTR-3/8X1/4

11.93

0.47

23.86

0.94

4.57

0.18

7.70

0.30

6.35

0.25

7/16

3/8

0.035

-

1/4

0.035

1.00

H-MTR-12M6M

13.53

0.53

27.06

1.07

4.00

0.16

10.0

0.39

6.35

0.25

9/16

12MM

-

1.00

6MM

-

-



All dimensions are in mullimeters unless otherwise specified, only for reference subject to change.
