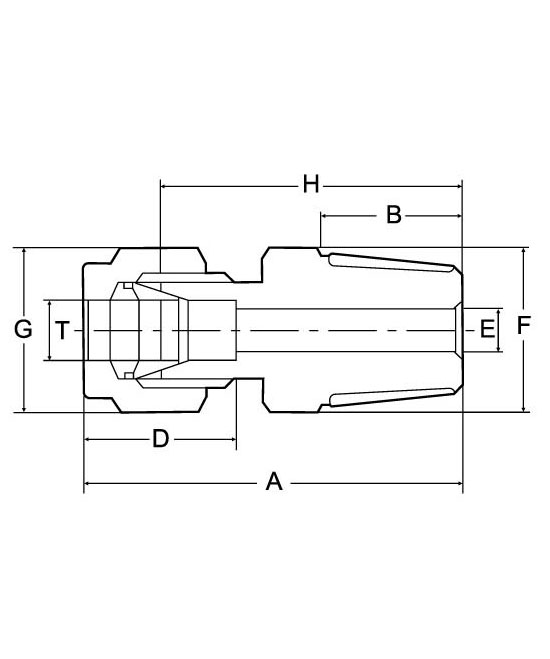

Tube fitting MC-S-2

T

TUBE

O.D.

PT-NPT

MALE

PIPE

SIZE

CATALOG

NUMBER

A

B

D

E

F

G

H

1/16

1/8

MC-005-1

26.5

10

8.6

1

10

10

22.7

1/16

1/4

MC-005-2

29.8

13

8.6

1

14

10

26.0

1/8

1/8

MC-01-1

30.8

10

12.7

3

12

10

24.2

1/8

1/4

MC-01-2

34.4

13

12.7

3

14

10

27.8

1/8

3/8

MC-01-3

35.6

14

12.7

3

17

10

29.0

1/8

1/2

MC-01-4

40.1

17

12.7

3

22

10

33.5

3/16

1/8

MC-015-1

31.5

10

13.7

3

12

12

24.9

3/16

1/4

MC-015-2

35.1

13

13.7

3

14

12

28.5

1/4

1/8

MC-02-1

33.1

10

15.3

5

14

14

27.7

1/4

1/4

MC-02-2

36.6

13

15.3

5

14

14

29.3

1/4

3/8

MC-02-3

38.2

14

15.3

5

17

14

30.8

1/4

1/2

MC-02-4

42.6

17

15.3

5

22

14

35.1

1/4

3/4

MC-02-6

46.1

19

15.3

5

27

14

38.8

3/8

1/8

MC-03-1

35.6

10

16.8

5

17

17

28.2

3/8

1/4

MC-03-2

38.8

13

16.8

6

17

17

31.3

3/8

3/8

MC-03-3

39.8

14

16.8

8

17

17

32.3

3/8

1/2

MC-03-4

44.1

17

16.8

8

22

17

36.8

3/8

3/4

MC-03-6

47.7

19

16.8

8

27

17

40.3

1/2

1/8

MC-04-1

39.2

10

22.8

5

22

22

29.0

1/2

1/4

MC-04-2

42.2

13

22.8

6

22

22

32.1

1/2

3/8

MC-04-3

43.2

14

22.8

8

22

22

33.1

1/2

1/4

MC-04-4

46.9

17

22.8

10

22

22

36.8

1/2

3/4

MC-04-6

50.4

19

22.8

10

27

22

40.3

1/2

1

MC-04-8

55.2

22

22.8

10

35

22

45.0

5/8

3/8

MC-05-3

43.9

14

24.4

8

24

27

33.8

5/8

1/2

MC-05-4

46.9

17

24.4

10

24

27

36.8

5/8

3/4

MC-05-6

50.4

19

24.4

12

27

27

40.3

3/4

1/2

MC-06-4

48.4

17

24.4

10

27

30

38.2

3/4

3/4

MC-06-6

50.4

19

24.4

15

27

30

40.3

3/4

1

MC-06-8

55.2

22

24.4

15

35

30

45.0

1

1/2

MC-08-4

55.4

17

31.3

10

35

38

43.1

1

3/4

MC-08-6

57.4

19

31.3

16.5

35

38

45.1

1

1

MC-08-8

60.4

22

31.3

20

35

38

48.1
